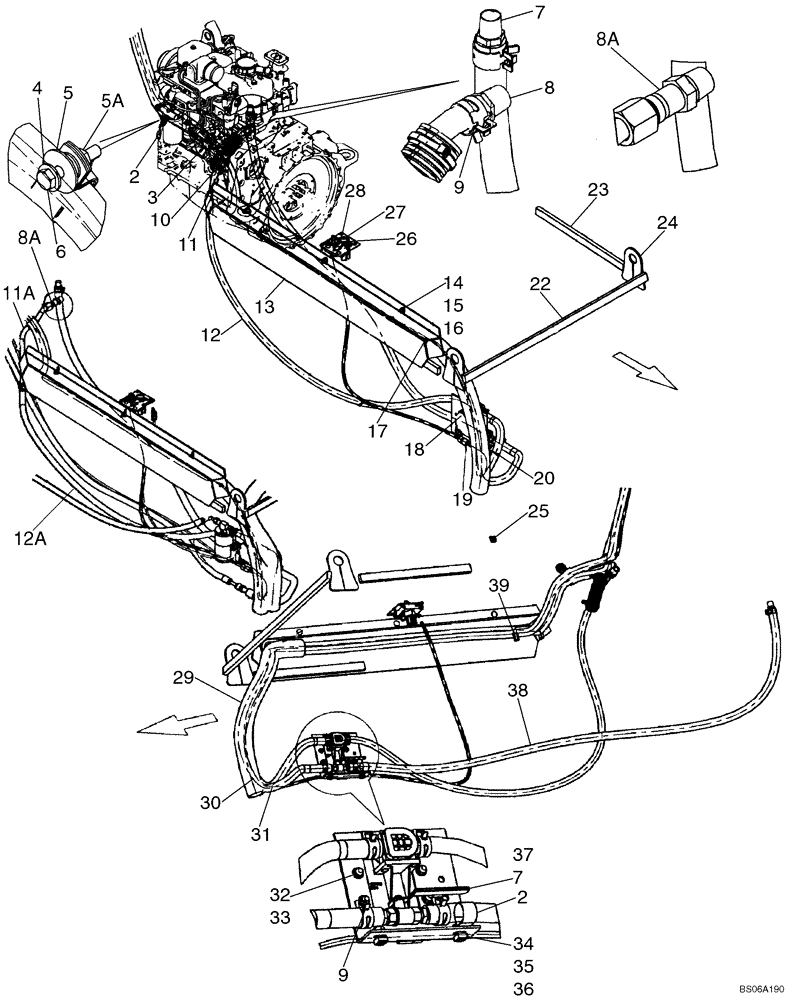

Запчасти Case 465 (09-40) - HEATER (09) - CHASSIS

1

87029159

HEATER ASSY.

See Figure 09-40A

1шт.

2

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

3

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Double Clamp; 22.2 dia

1шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

.344 x 1.250 x .0611 in

1шт.

5a

9706690

NUT,M8 x 1.25, Cl 8

2шт.

6

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

7

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

3шт.

8

87302136

FITTING,5/8" Hose x 1/2" NPTF, Barbed

If Used

1шт.

8a

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

Used With 11A, 12A

1шт.

9

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

If Used

8шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

11

308651A1

COVER

1-3/16 in; If Used

1шт.

11

87462219

PROTECTION STRIP

1.0 in; If Used

1шт.

11a

87360940

TUBE,15.88 mm OD

Tube, Heater

1шт.

12

87438210

HEATER HOSE,15.88 mm ID x 1830.00 mm, SAE 20R3

If Used

1шт.

12a

87383270

HEATER HOSE,15.88 mm ID x 1460.00 mm, SAE 20R3, SAE J20

1шт.

12a

87438212

HEATER HOSE,15.88 mm ID x 1900.00 mm, SAE 20R3

Supply, If Used

1шт.

13

87033596

COVER

106 mm (4.17 in) Width Of Flat To First Bend; If Used

2шт.

13

87460906

COVER

118.8 mm (4.68 in) Width Of Flat To First Bend; Used With ROPS 87461181, See Figure 09-23

2шт.

14

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

3шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

16

412250

NUT,M8 x 1.25, Cl 8

3шт.

17

87438213

HEATER HOSE,15.88mm ID x 3215mm L, SAE 20R3

Return

1шт.

18

87520822

CONTROL VALVE

Replaces 87023391; If Used, Incl Instructions And Adapter Harness To Go From Square Configuration To T Configuration- 3 Pins Across The Top, Then One Below

1шт.

18

87520839

VALVE

Water; If Used; Wiring Has 4 Pins In A Square Configuration

1шт.

19

87439550

HARNESS

HVAC

1шт.

20

87439472

BRACKET

Water Valve And Dryer

1шт.

22

87036372

SEALING STRIP

Lower Front ROPS

1шт.

23

87036371

SEAL

Lower Side ROPS

2шт.

24

295076A1

SEAL

ROPS Pivot Pin

2шт.

25

A149802

FUSE

20 Amp

1шт.

26

87442088

PLUG

1шт.

27

87439636

CONTROL

Incl. 27A - 27G, Components Not Illustrated Separately

1шт.

27

87520823

CONTROL

HVAC; Replaces 87439636; Incl. 15A - 15G, Components Not Illustrated Separately

1шт.

27a

87440102

CONTROL PANEL

Head Assy

1шт.

27b

87440104

HARNESS

HVAC Controls

1шт.

27b

87520827

WIRE HARNESS

HVAC Controls; Part of 87520823

1шт.

27c

87440105

DECAL

Heater Controls

1шт.

27d

87440108

KNOB

HVAC Control

2шт.

27e

86729669

SWITCH

Blower

1шт.

27f

86729675

SWITCH,5000 Ohm

1шт.

27g

87440262

BULB

HVAC Control

1шт.

28

86500940

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

3шт.

29

87439844

GUARD

Trim ROPS Front

1шт.

30

87439990

GUARD,46mm ID x 900mm L, Nylon Woven

Heater Hose

1шт.

31

87438211

HEATER HOSE,15.88 mm ID x 2985.00 mm, SAE 20R3

Supply

1шт.

32

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

6шт.

33

86511444

FLANGE NUT,Hex, M6 x 1

6шт.

34

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.23

2шт.

35

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

36

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

37

87441937

VALVE

Heater Hose

1шт.

38

87438212

HEATER HOSE,15.88 mm ID x 1900.00 mm, SAE 20R3

Return

1шт.

39

87439845

GUARD

Trim ROPS Rear Bottom

1шт.
