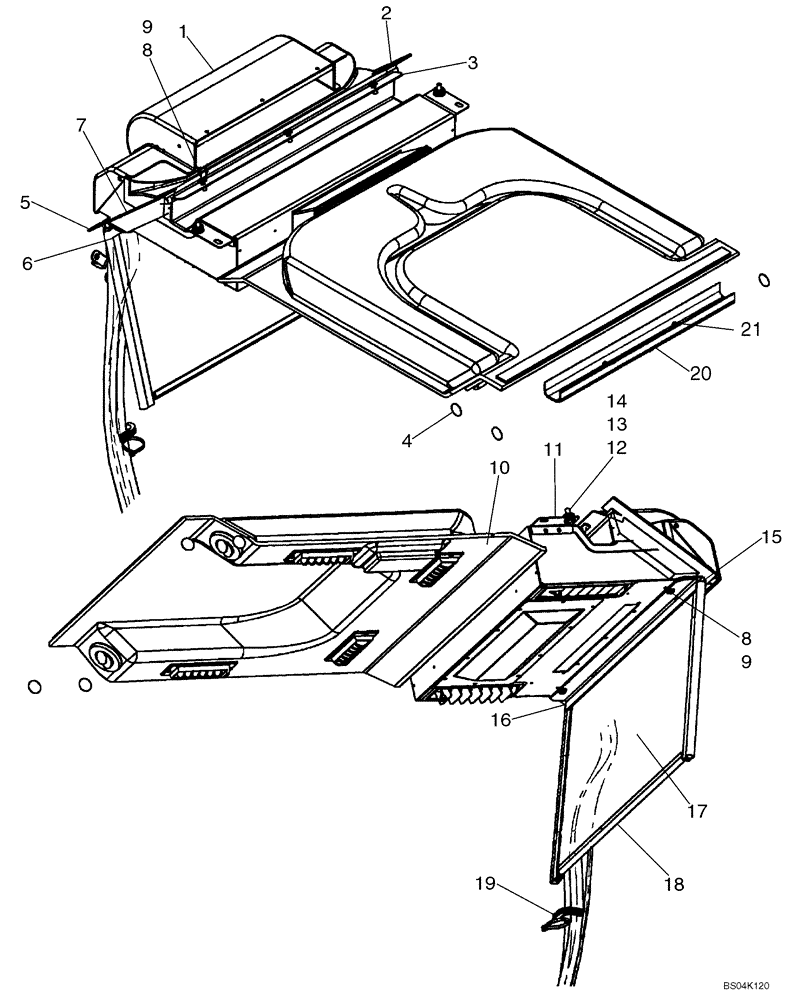

Запчасти Case 465 (09-39) - HEATER - MOUNTING (09) - CHASSIS

1

87029159

HEATER ASSY.

See Figure 09-40A

1шт.

2

87036373

SEAL

Lower Side

1шт.

3

87029784

BRACKET

1шт.

4

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm Dia, Lexan

4шт.

5

87450833

TAPE

Seal

2шт.

6

373316A1

DOOR SEAL

2шт.

7

87036359

PAD

2шт.

8

281032

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8, Full Thd

5шт.

9

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

5шт.

10

87029162

LINING

See Figure 09-37

1шт.

11

87029785

BRACKET

2шт.

12

87436246

THREADED INSERT

2шт.

13

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

14

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

15

87035709

SUPPORT

Window

1шт.

16

87035708

SUPPORT

Window

1шт.

17

373200A2

GLASS

1шт.

18

373315A1

DOOR SEAL

Top Edge

2шт.

19

87439846

GUARD

Trim ROPS Rear

1шт.

20

87438318

SUPPORT

Headliner Front

1шт.

21

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Push In

2шт.
