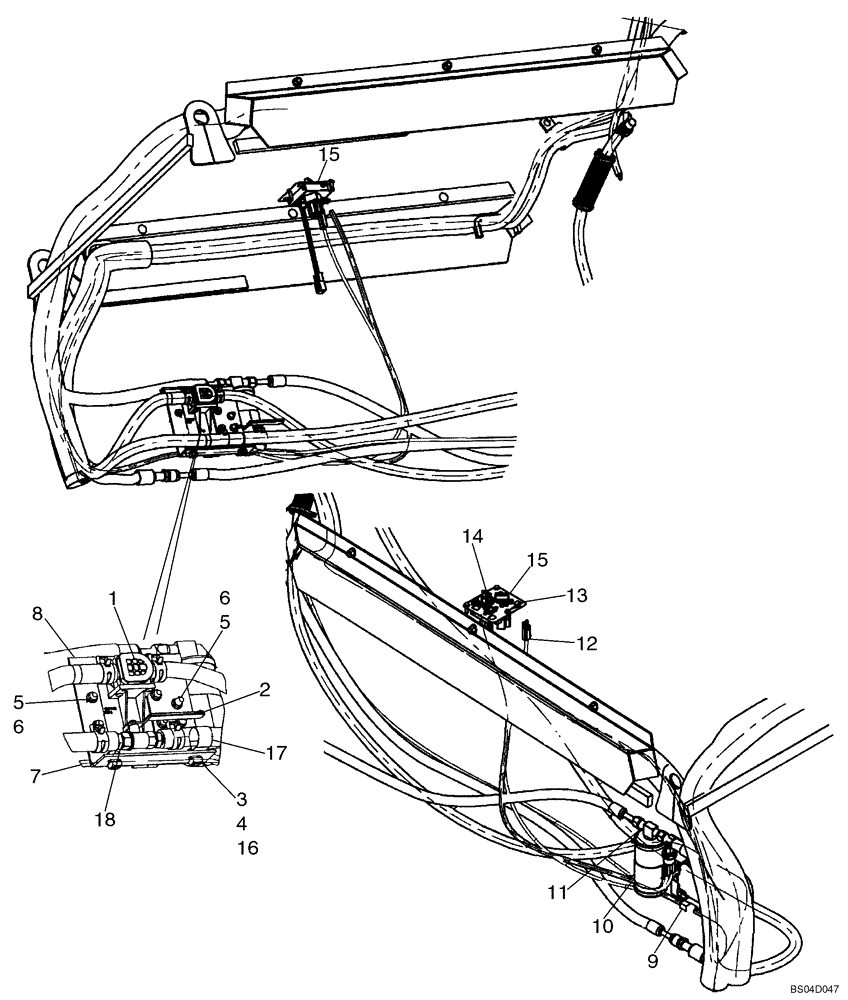

Запчасти Case 465 (09-35) - HEATER AND AIR CONDITIONING - RECEIVER-DRIER MOUNTING (09) - CHASSIS

1

87520822

CONTROL VALVE

Replaces 87023391; If Used, Incl Instructions And Adapter Harness To Go From Square Configuration To T Configuration- 3 Pins Across The Top, Then One Below

1шт.

1

87520839

VALVE

Water; If Used; Wiring Has 4 Pins In A Square Configuration

1шт.

2

87441937

VALVE

Heater Hose Ball

1шт.

3

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

5

86619800

FLANGE NUT,M6 x 1, Cl 8

If Used With 5A

6шт.

5a

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

If Used With 5

6шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

If Used with 6A, 6B

4шт.

6a

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used, with 6, 6B

4шт.

6b

86511444

FLANGE NUT,Hex, M6 x 1

If used, with 6, 6A

4шт.

7

87439550

HARNESS

HVAC

1шт.

8

87439472

BRACKET

Water Valve And Dryer

1шт.

9

86625515

PRESSURE SWITCH

AC

1шт.

10

87437501

BRACKET

Receiver Dryer

1шт.

11

86625481

RECEIVER-DRYER

1шт.

12

87445909

HARNESS

Pressure Switch

1шт.

13

86500940

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

3шт.

14

87445255

SWITCH

AC; With 6 in. Leads

1шт.

14

87555249

SWITCH

AC; Requires A/C Harness Jumper 87581931; Included In Kit 87582195, See Figure 09-35A

1шт.

87581931

HARNESS

AC; With 8 in. Leads; Included In Kit 87582195, See Figure 09-35A

1шт.

15

87520823

CONTROL

HVAC; Replaces 87439636; Incl. 15A - 15G, Components Not Illustrated Separately; If Used

1шт.

15

87555246

CONTROL PANEL

HVAC; Replaces 87520823; Incl. Harness 87555247, Other Component Breakdown Not Available At Time Of Printing; If Used

1шт.

15a

87440102

CONTROL PANEL

Head Assy

1шт.

15b

87440104

HARNESS

HVAC Controls

1шт.

15b

87520827

WIRE HARNESS

HVAC Controls; Part of 87520823

1шт.

15b

87555247

HARNESS

HVAC Controls; Part of 87555246

1шт.

15c

87440105

DECAL

Heater Controls

1шт.

15d

87440108

KNOB

HVAC Control

2шт.

15e

86729669

SWITCH

Blower

1шт.

15f

86729675

SWITCH,5000 Ohm

1шт.

15g

87440262

BULB

HVAC Control

1шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

18

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

2шт.
