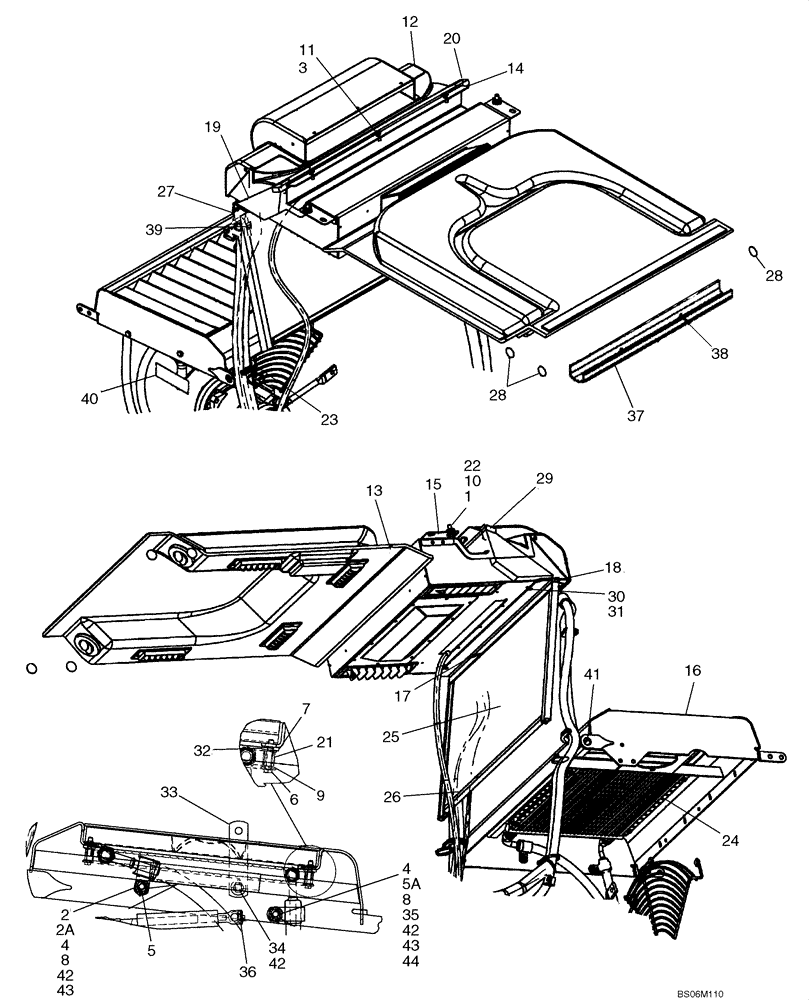

Запчасти Case 465 (09-33) - HEATER AND AIR CONDITIONING - MOUNTING (09) - CHASSIS

1

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

2шт.

2a

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

If Used

2шт.

3

281032

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8, Full Thd

3шт.

4

9706690

NUT,M8 x 1.25, Cl 8

2шт.

5

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

25.4mm 3/8 in Bolt

4шт.

5a

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

22.2 mm, 10.3 mm Hole

1шт.

6

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

7

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

4шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

9

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

4шт.

10

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

11

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

3шт.

12

87029158

HVAC Assy; See Figure 09-38

1шт.

12

87383261

BLOWER

HVAC Assy; Replaces 87029158; See Figure 09-38A

1шт.

13

87029162

LINING

Headliner Assy; See Figure 09-37

1шт.

14

87029784

BRACKET

Mounting Bracket, Rear

1шт.

15

87029785

BRACKET

Mounting, Heater

1шт.

16

87450784

HOOD ASSY.

Hood; 6 Holes Right Hand Side Plate; If Used

1шт.

16

87460803

HOOD ASSY.

Hood; 8 Holes Right Hand Side Plate; If Used

1шт.

17

87035708

SUPPORT

Window, Rear

1шт.

18

87035709

SUPPORT

Window, Rear

1шт.

19

87036359

PAD

2шт.

20

87036373

SEAL

Seal Lower Side ROPS

1шт.

21

87301392

SPACER,1/8" Pipe x .591"

If Used

4шт.

21

87574372

SPACER,6.8mm ID x 10.3mm OD x 19mm L

If Used

4шт.

22

87436246

THREADED INSERT

2шт.

23

87439846

GUARD

ROPS Rear

2шт.

24

87563692

CONDENSER

Condenser; Replaces 87441689, 87515917

1шт.

25

373200A2

GLASS

Rear Window, HVAC

1шт.

26

373315A1

DOOR SEAL

Top Edge Seal

2шт.

27

373316A1

DOOR SEAL

Rear Window Side

2шт.

28

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm dia, Lexan

4шт.

29

87450833

TAPE

Seal

2шт.

30

281032

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8, Full Thd

2шт.

31

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

32

87301324

NUT,Spring, M5 x 0.8

M5 x .08

4шт.

33

87457335

LOCKING BAR

If Used

1шт.

34

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

If Used

1шт.

35

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

36

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist

1шт.

37

87438318

SUPPORT

Headliner Front

1шт.

38

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Push In

2шт.

39

H439303

CLIP

Wire Harness

1-6шт.

40

86639409

DECAL

AC Specs

1шт.

41

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

42

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

If Used

7шт.

43

254697A1

SPACER

Pivot Assist Helper Spring

1шт.

44

87340800

SPACER,5/8" Tube x 15.88mm

Spacer; 5/8 X .625 Tube; If Used

1шт.

44

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

Spacer; 5/8 X .937 Tube; If Used

1шт.
