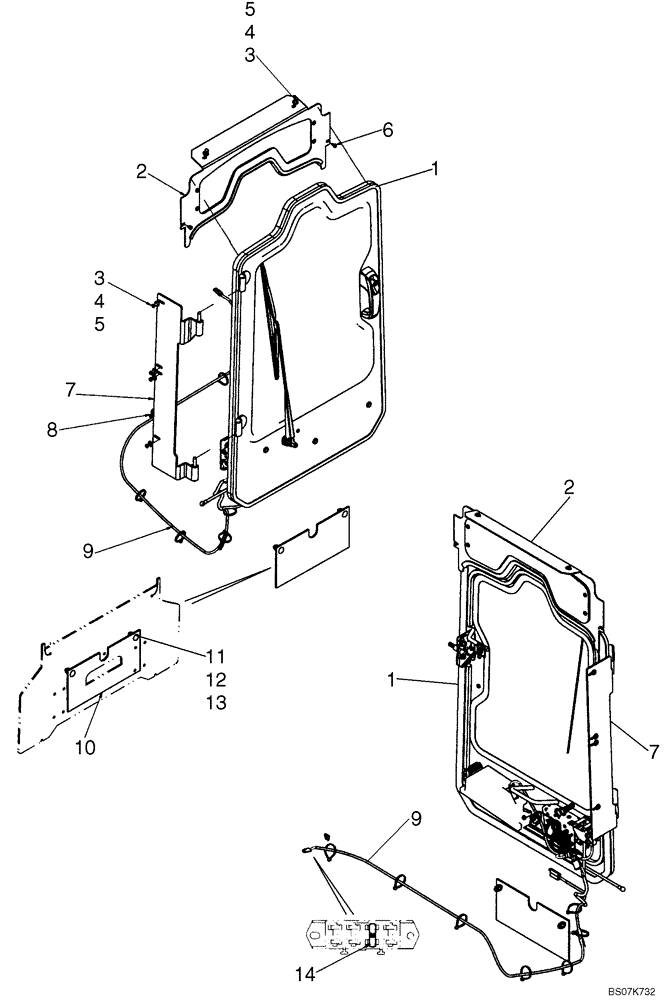

Запчасти Case 465 (09-29) - DOOR, FRONT, METAL FRAME (09) - CHASSIS

87548389

SERVICE KIT

HLXT Front Door Kit; Incl. 1 - 14

1шт.

1

87524962

CABIN DOOR

HLXT Front Door Assembly; See Figure 09-29A

1шт.

2

87524963

PANEL

Header Panel Assembly; See Figure 09-29B

1шт.

3

86511444

FLANGE NUT,Hex, M6 x 1

6шт.

4

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

6

86639137

SELF-TAP SCREW,Hex Hd, M6.3 x 13

2шт.

7

87524964

HINGE

1шт.

8

529070

CABLE TIE,368.3mm L

CABLE STRAP

10шт.

9

87554264

HARNESS

Door Jumper

1шт.

10

87041290

PLATE ASSY.

1шт.

11

86512554

NUT,M10 x 1.5, Cl 10

2шт.

12

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

14

A149802

FUSE

20 Amp Yellow

1шт.
