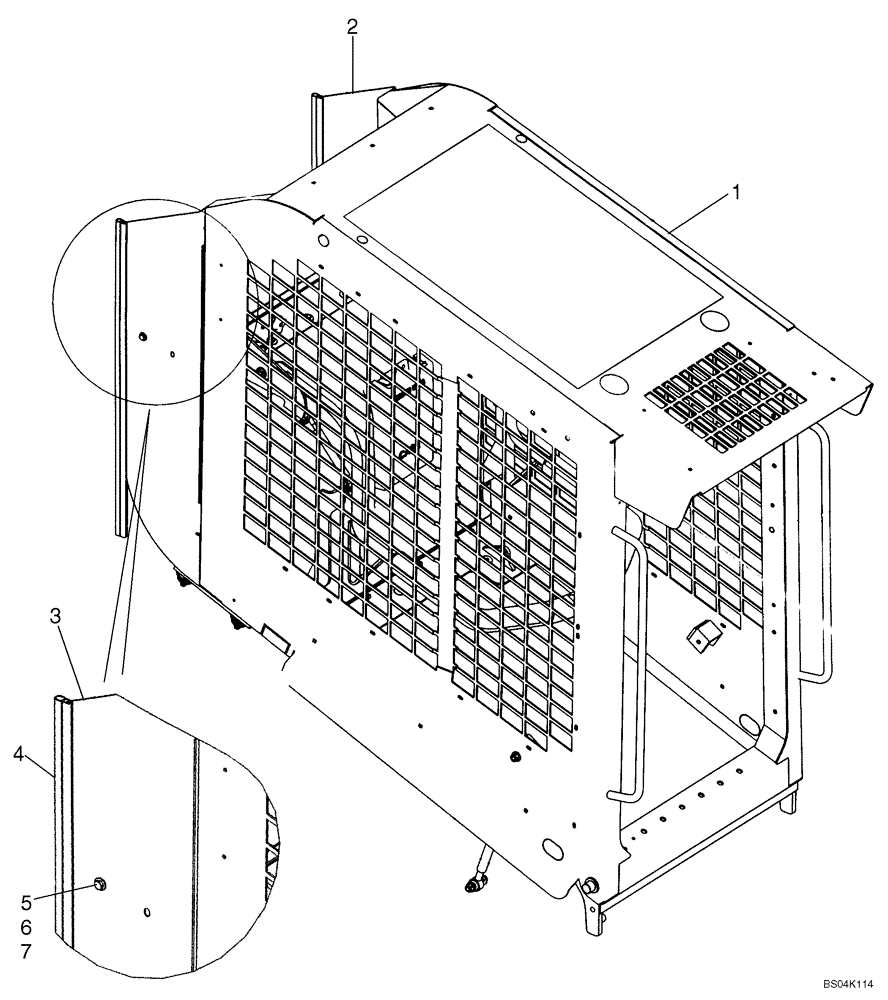

Запчасти Case 465 (09-28C) - EXTENSION PANELS (09) - CHASSIS

1

87032050

ROPS

1шт.

2

448763A1

PANEL

Extension, Left Hand

1шт.

3

448762A1

PANEL

Extension, Right Hand

1шт.

4

188980A1

SEAL

ROPS To Frame; Vertical

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.
