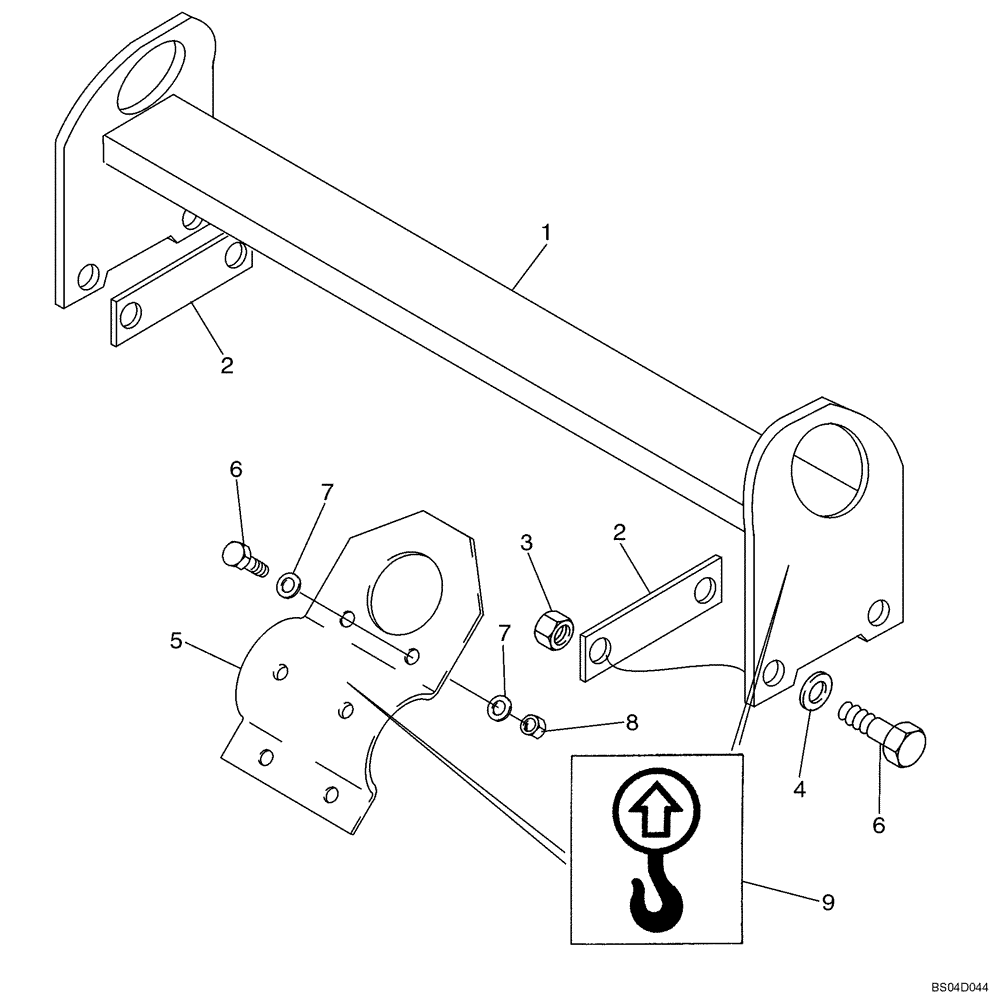

Запчасти Case 465 (09-24) - LIFT HOOK (09) - CHASSIS

1

87430535

BRACKET

Lift Hook

1шт.

2

87433116

BAR

Doubler

2шт.

3

832-41412

NUT,M12 x 1.75, Cl 10

4шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

5

315937A1

WELDABLE LUG

Rear

4шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

8шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

8

9706685

NUT,M12 x 1.75, Cl 8

8шт.

9

139729A1

DECAL

See Figure 09-42, Ref 7

4шт.
