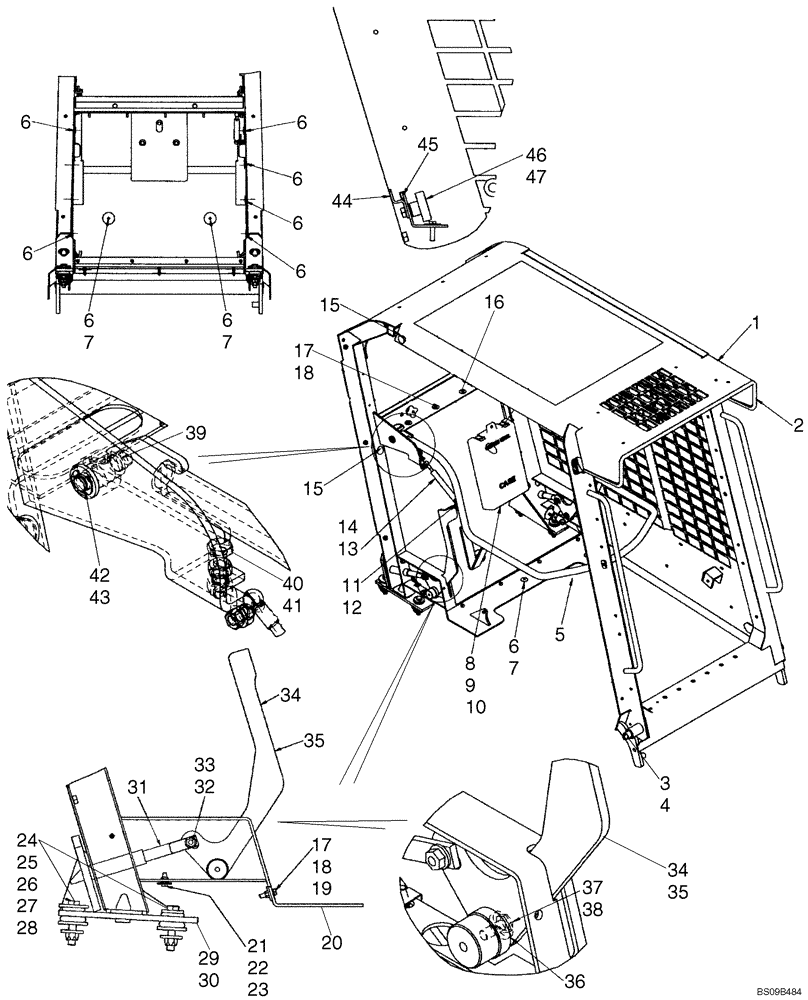

Запчасти Case 465 (09-23A) - FRAME AND SEAT BAR (09) - CHASSIS

87461352

SERVICE KIT

ROPS Service Kit, Order From Wholegoods; Incl. Ref 1 87458064 And Decals 382622A1, 87438592, 251744A1, Decal 251745A1 No Longer In Kit; Incl. Canopy Trim 87461882

1шт.

1

87458064

ROPS

1шт.

2

87461882

TRIM PANEL

Canopy Edge

1шт.

3

827695C1

CIRCLIP

Ring

2шт.

4

144345A3

PIVOT PIN,25.4mm OD x 825mm L

Pivot Pin

1шт.

5

419844A1

BAR

W/Seat And /Foam

1шт.

6

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In

11шт.

7

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

Flat Washer

5шт.

8

R46464

CASE

Operator Manual Retention

1шт.

9

86624136

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

3шт.

10

86625158

Rivet Lg, .187 x .575 in

3шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

12

189609A1

BALL STUD,M8 x 1.25

Ball Stud, M8 x 1.25(10mm)

2шт.

13

254307A1

CLIP

Stud Retainer; If Used

2шт.

14

189787A2

SHOCK ABSORBER

Spring

1шт.

15

86625129

PLUG,Dome, 1" Hole, Nylon

3шт.

16

250705A2

BAND

Filler Outer Heat Shield Strip

1шт.

17

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

8шт.

18

86624181

WASHER,M6

4шт.

19

86512440

NUT,M6, Cl 10

4шт.

20

247118A1

BAND

Lower Heat Shield Back-Up Strip

1шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

22

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

23

127367A1

NUT,M6, U

2шт.

24

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

25

86624149

WASHER,0.53" ID x 1.5" OD x 0.19" Thk

6шт.

26

H426395

MOUNTING PARTS

Engine Mount

4шт.

27

240669A1

WASHER

Special Flat Washer

6шт.

28

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

29

282300A3

SUPPORT

Bracket/W RH Rops Rear Latch

1шт.

30

282301A3

SUPPORT

Bracket/W LH Rops Rear Latch

1шт.

31

195366A2

PIN

Rear Latch Pin

2шт.

32

87695417

HEX SOC SCREW,3/8" - 16 - 1/2" x 1/2" Shoulder

Shoulder Screw 3/8 x .500 x .500 in

2шт.

33

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

34

87597590

LEVER

Rops Latch LH

1шт.

35

87597591

LEVER

Rops Latch RH

1шт.

36

257384A1

SPACER

Rops Latch Pivot

2шт.

37

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

38

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

39

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

Pivot Seat Bar

2шт.

40

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

41

86500689

NUT,M10 x 1.5, Cl 10

2шт.

42

D143415

SNAP RING,0.50” ID, Klipring

2шт.

43

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

44

414792A2

BRACKET

Lower Window Mounting

1шт.

45

333988A1

SEAL

Lower Rear

1шт.

46

362337A1

KNOB

Fluted Torque

2шт.

47

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
