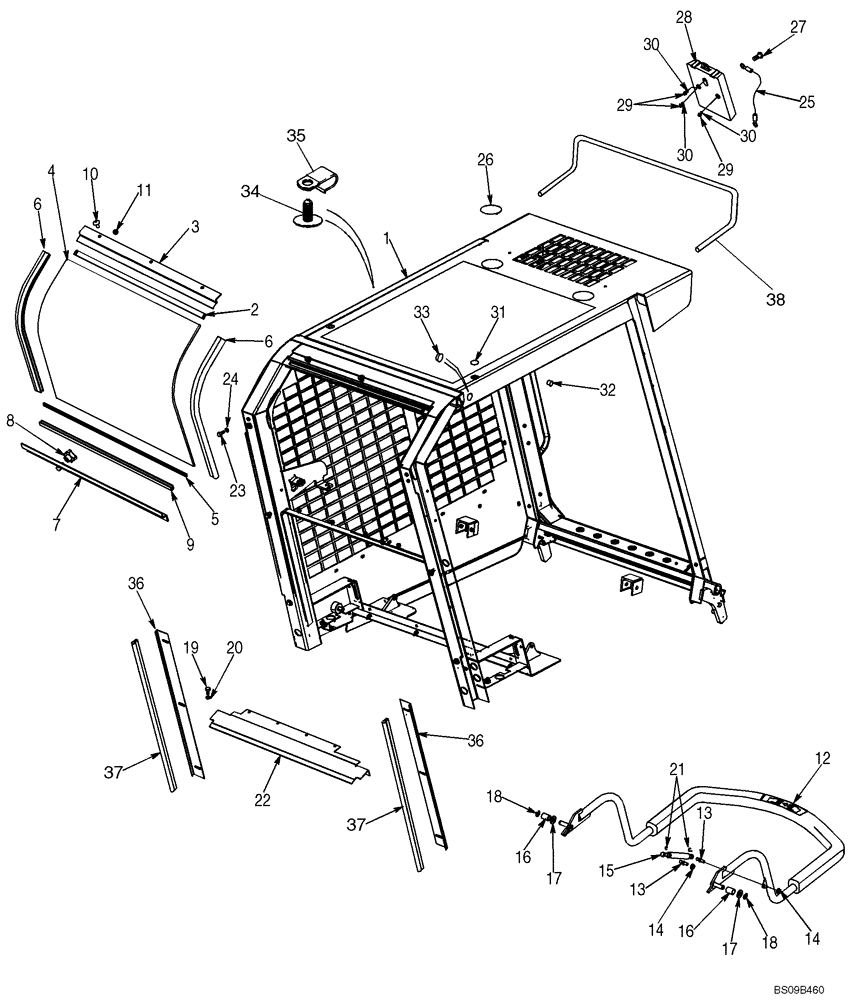

Запчасти Case 465 (09-23) - FRAME AND SEAT BAR-IF USED (09) - CHASSIS

87452806

ROPS Service Kit, Order From Wholegoods; Incl. Ref 1 87032050 And Decals 251744A1, 87438592, 382622A1, 251745A1 And Canopy Trim 87461882

1шт.

87461352

SERVICE KIT

ROPS Service Kit, Order From Wholegoods; Incl. Ref 1 87458064 And Decals 382622A1, 87438592, 251744A1, Decal 251745A1 No Longer In Kit; Incl. Canopy Trim 87461882

1шт.

1

NSS

NOT SOLD SEPARAT

87032050 ROPS Frame Only; Used on Models With Heater/AC Hose Cover 8745806 that Measures 106.8 mm (4.20 in) Width Of Flat To First Bend, See Figure 09-36, Ref 24 or Figure 09-40, Ref 13; For Service Order 8745806 ROPS Service Kit

1шт.

1

NSS

NOT SOLD SEPARAT

87458064 ROPS Frame Only; Replaces 87461181; Used on Models With Heater/AC Hose Cover that Measures 118.8 mm (4.68 in) Width Of Flat To First Bend; See Figure 09-36 Ref 24 or Figure 09-40 Ref 13; For Service Order 87461352 ROPS Service Kit

1шт.

2

321274A1

SEAL

1шт.

3

321268A1

CHANNEL

1шт.

4

321269A1

GLASS

Rear

1шт.

5

333988A1

SEAL

639 mm (25-5/32 in); Lower Rear Window

1шт.

6

321276A1

SEAL

Rear Window Edge

2шт.

7

414792A2

BRACKET

300 mm (11-13/16 in) Between Bolt Holes

1шт.

8

362337A1

KNOB

2шт.

9

321275A1

SEAL

587 mm (23-1/8 in), Bottom Glass Seal

1шт.

10

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

11

14048221

NUT,M8 x 1.25, Cl 10

Replaces 832-41408

3шт.

12

419844A1

BAR

Seat

1шт.

13

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

Replaces 825-5148

2шт.

15

189787A2

SHOCK ABSORBER

1шт.

16

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

17

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

Replaces 496-21053

2шт.

18

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

19

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

If Used

2шт.

19

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

20

86500689

NUT,M10 x 1.5, Cl 10

Replaces 829-1410

2шт.

21

254307A1

CLIP

2шт.

22

87040141

PANEL

Hood

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Replaces 614-8020

4шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Manual, Operators; If Used

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

26

293887A1

COVER

70 mm (2-3/4 in); Models Without Lift Hooks; See Figure 09-24; If Used

2шт.

27

R46463

SCREW,0.18" x 0.75"

Manual Retention

1-2шт.

28

R46464

CASE

1-2шт.

29

151-522

RIVET,Pop, 3/16" x .575"

If Used

3шт.

29

86625158

Rivet, Lg .187 x .575 in

3шт.

30

86624136

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

13/64 x 15/32 x 3/64

3шт.

31

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm (1 in); Gray; If Used

2шт.

32

86625127

PLUG,Dome, .375" hole, Nylon

Replaces 353-402

1-2шт.

33

86625129

PLUG,Dome, 1" Hole, Nylon

Replaces 353-411

1-3шт.

34

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

If Used

1шт.

34

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In

11шт.

35

134579

WIRE CLAMP,J

1шт.

36

280476A2

ANGLE

2шт.

37

280491A1

SEAL

If Used

2шт.

353-400

PLUG,Dome, .250" hole, Nylon

Models with top window; See Figure 09-31

2шт.

38

87461882

TRIM PANEL

Canopy Edge Trim

1шт.
