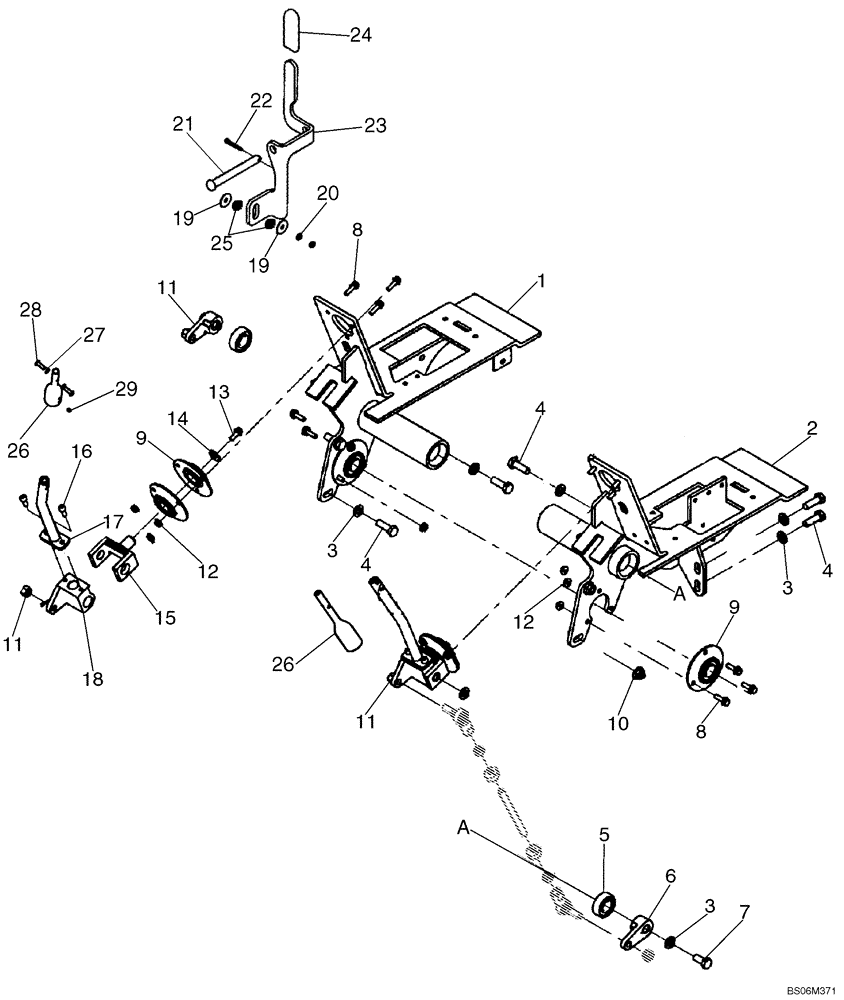

Запчасти Case 465 (09-11) - CONTROLS - LOADER AND GROUND DRIVE (09) - CHASSIS

1

87618097

FRAME

Right Hand; Replaces 87455434

1шт.

2

87618096

FRAME

Left Hand; Replaces 87439617

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

5

102776A1

BEARING, BALL,17 mm ID x 40 mm OD x 12 mm

4шт.

6

237773A1

LEVER ASSY.

3шт.

7

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

8

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

12шт.

9

112380A1

BEARING ASSY

Incl 465004R91

6шт.

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

Ball

1шт.

10

43435

FLANGE NUT,Hex, M10 x 1.5

8-6шт.

11

80855

NUT,Hex, 3/8" - 24

6шт.

12

86511444

FLANGE NUT,Hex, M6 x 1

12шт.

13

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

2шт.

14

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

15

87441548

SUPPORT

2шт.

16

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

17

87427007

LEVER

2шт.

18

238357A3

PIVOT

2шт.

19

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

20

87825

NUT,#10-32

2шт.

21

439-1872

Pin; .5 x 4.5

1шт.

22

432-1216

COTTER PIN,3/16" x 1"

1шт.

23

87455482

LEVER

Manual Override

1шт.

24

D126613

HANDLE

1шт.

25

103777A1

SEALING WASHER

Sealing

2шт.

26

87564037

HANDLE

Used With Handles On 04-15B, 04-16B

2шт.

27

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

Used With Handles On 04-15B, 04-16B

4шт.

28

87534744

FASTENER,BTN HD, #10 - 32 x 5/8"

Screw, Hex Soc #10-32 x 5/8; Used With Handles On 04-15B, 04-16B

4шт.

29

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

Set Screw, #10-32 x 1/4; Used With Handles On 04-15B, 04-16B

4шт.
