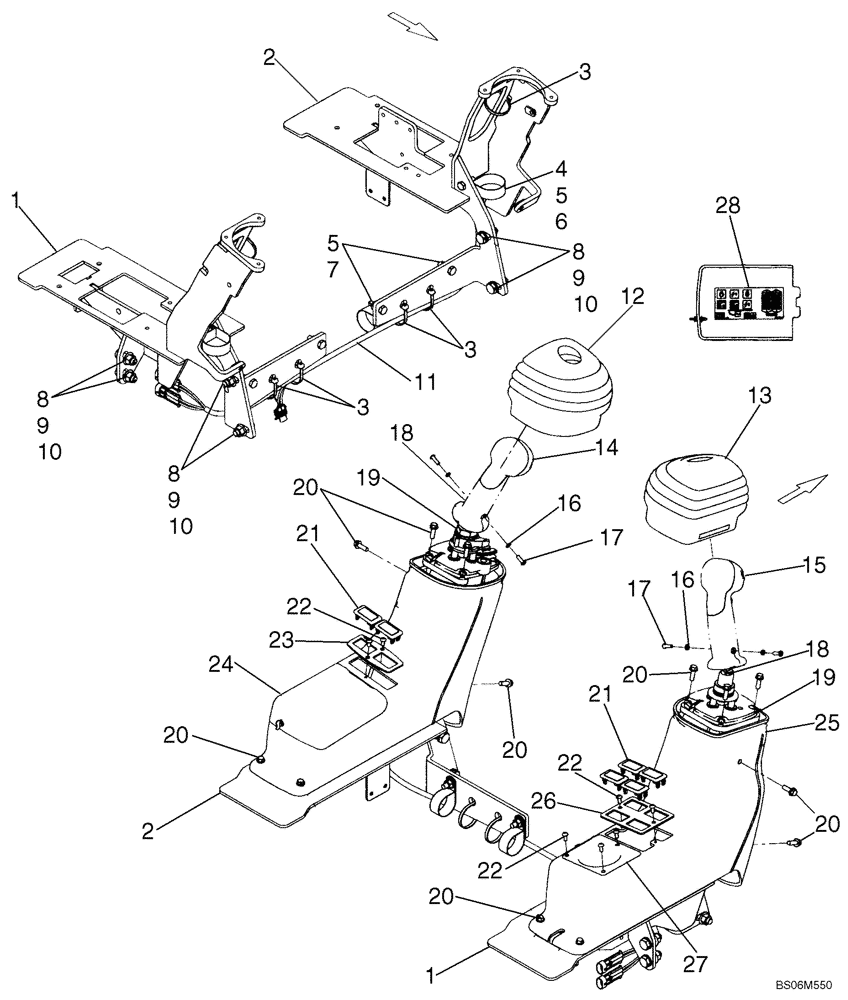

Запчасти Case 465 (09-10A) - JOYSTICK CONTROL, MOUNTING (MODELS WITH PILOT CONTROL) (09) - CHASSIS

1

87546981

BRACKET

Bracket, Console; Right Hand

1шт.

2

87546983

BRACKET

Bracket, Console; Left Hand

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

4

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

10

43435

FLANGE NUT,Hex, M10 x 1.5

8шт.

11

87571936

HARNESS

Interlock/Float

1шт.

12

87568426

BOOT

LH

1шт.

13

87568427

BOOT

RH

1шт.

14

REF

INSTRUCTION

Handle, Left Hand; See Fig 04-16B

1шт.

15

REF

INSTRUCTION

Handle, Right Hand; See Fig 04-15B

1шт.

16

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

17

87534744

FASTENER,BTN HD, #10 - 32 x 5/8"

4шт.

18

87568432

ROD

Rod, Pilot Handle Mounting

2шт.

19

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

2шт.

20

87556251

SCREW,Hex, 1/4" - 20 x 3/4"

Screw; 1/4-20 x 3/4 Hex Washer HD CST ZND

14шт.

21

126844A1

PLUG,1.427” x .62” , Plastic

Cover, Switch Hole

6шт.

22

87564728

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2"

Screw; Tapping #10-16 x 1/2 SPCL Pan

7шт.

23

87568429

CONSOLE

Plate, Console Switch, Left Hand

1шт.

24

87568436

CONSOLE

Console Cover, Left Hand; See Fig 09-10B

1шт.

25

87568425

CONSOLE

Console Cover, Right Hand

1шт.

26

87568431

CONSOLE

Plate, Console Switch, Right Hand

1шт.

27

87568439

HOLDER

Cup Holder

1шт.

28

87600621

DECAL

Decal, Fuse; See Figure 09-43B

1шт.
