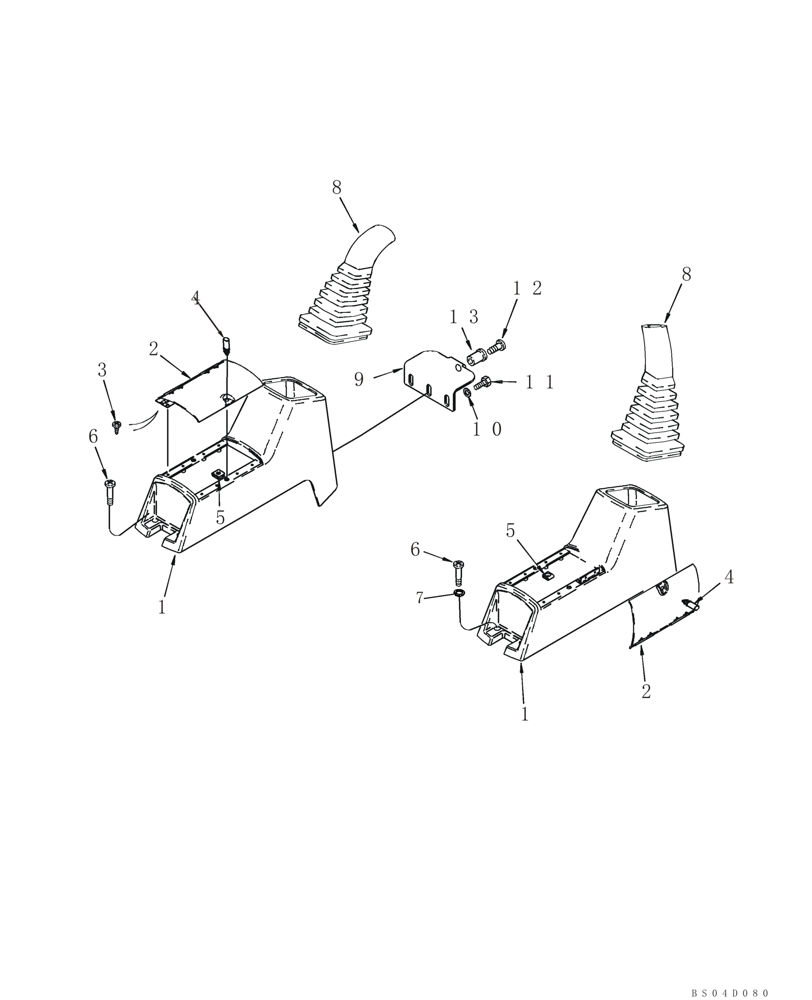

Запчасти Case 465 (09-10) - CONSOLE, CONTROL (09) - CHASSIS

426112A1

CONSOLE

Left-Hand; Incl. 1 - 5

1шт.

426111A1

CONSOLE

Right-Hand; Incl. 1 - 5

1шт.

1

426110A1

CONSOLE

Control

1шт.

2

426109A1

COVER ASSY

Incl. 2A

1шт.

2a

87396058

Hinge

2шт.

3

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

4шт.

4

236536A1

ARRESTER

Latch, Console; Left Hand and Right Hand

1шт.

5

236535A1

CLIP,ELECTRICAL

1шт.

6

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

7

892-11005

LOCK WASHER,M5

4шт.

8

192654A2

BELLOWS

2шт.

8

87577502

RUBBER PAD

Used With Handles On 04-15B, 04-16B

2шт.

9

314570A1

SUPPORT

9.52 mm Hole; Front; Console

2шт.

10

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

12

87030526

SCREW,Pan, #10 - 32 x 1"

2шт.

13

D122634

ISOLATOR,12.7mm OD x 14.1mm L

2шт.
