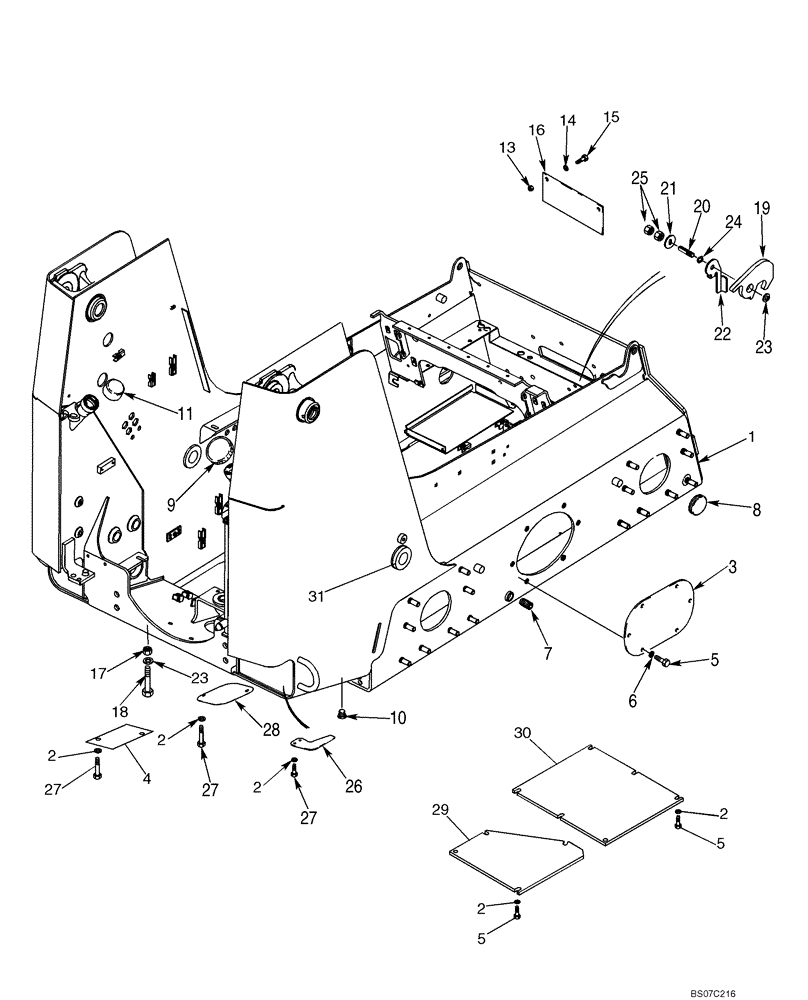

Запчасти Case 465 (09-08) - CHASSIS (09) - CHASSIS

87449857

SERVICE KIT

465 Chassis Kit; Order From Wholegoods; Incl. Frame 87618145 Used in Production, Ref 9, 11, Figure 04-07 Ref 21, 22, 23, Decal 251745A1, And Various Plugs

1шт.

1

87618154

Frame; Order From Wholegoods; Used in Production; Replaces 87618145, 87371076

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

18шт.

3

87411208

COVER PLATE

2шт.

4

H436914

LARGE PLATE

PLATE, LARGE

1шт.

5

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

18шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

7

86625118

DRAIN PLUG,1/2" - 14 NPT

2шт.

8

86991034

PLUG

Axle Access

4шт.

9

H436887

CAP

Fuel Filler

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

Hydraulic Reservoir

1шт.

11

257448A1

CAP

Oil Filler; Incl. 12

1шт.

12

292259A1

SEAL

Filler Cap; Not Illustrated

1шт.

13

86512554

NUT,M10 x 1.5, Cl 10

2шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

16

87041290

PLATE ASSY.

1шт.

17

832-41320

NUT,M20 x 2.5, Cl 10

2шт.

18

9843590

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

2шт.

19

294910A1

LATCH

1шт.

20

294943A1

STUD

13/16 x 1-15/32 x 1/8; Latch Mounting

1шт.

21

294967A1

WASHER

Latch Mounting

1шт.

22

294911A2

HOOK

Plate Latch Return

1шт.

23

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

24

278332A1

SPRING WASHER

M12 x 30; 10.9

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

2шт.

26

189422A1

COVER

2шт.

27

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

28

247609A1

COVER

1шт.

29

87458100

PLATE

1шт.

30

87458102

PLATE

1шт.

31

295761A1

PIVOT

Boss, Pivot

4шт.

87422323

PLATE

Rear Tie Down Brackets

2шт.

32

254799A1

STUD

M16 x 45; Axle Studs

32шт.
