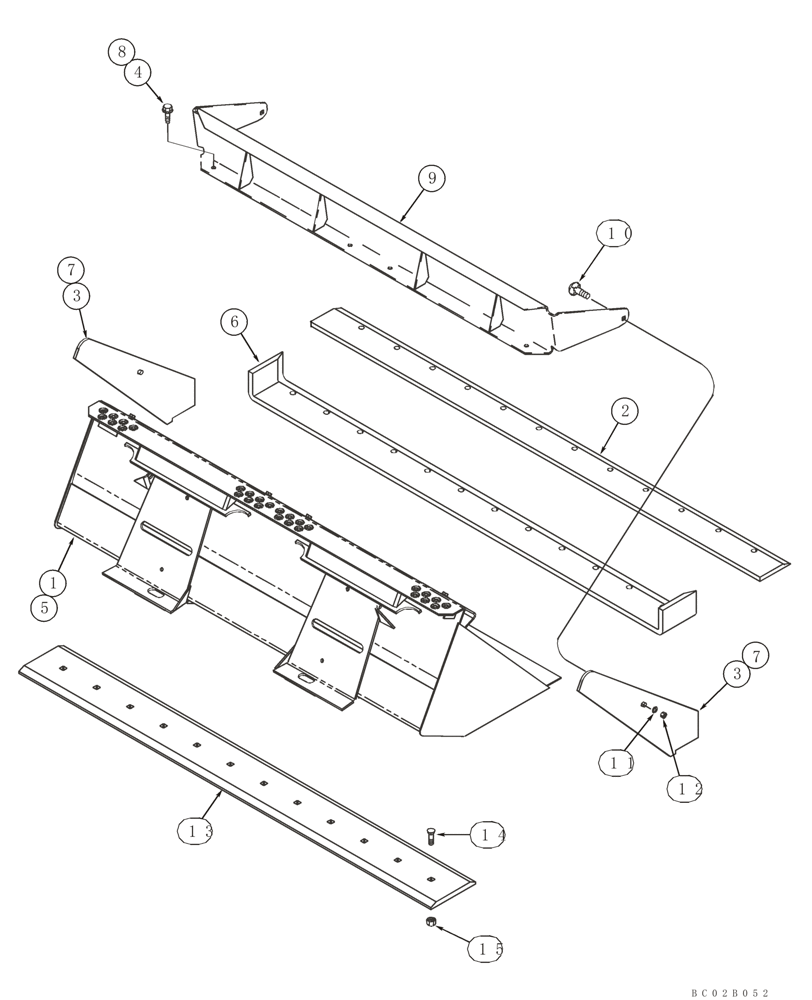

Запчасти Case 465 (09-06) - BUCKETS, LOADER - 1860 MM (73 IN) WIDE BUCKET (09) - CHASSIS

REF

INSTRUCTION

LIGHT MATERIAL

1шт.

1

244554A2

ATTACHMENT

1860 mm (73 In); Machinery Item; Incl. 2, 3

1шт.

2

H438919

EDGE, CUTTING

152 mm (6 In); Welded On

1шт.

3

245109A2

EDGE, CUTTING

Side; Welded On

2шт.

4

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

REF

INSTRUCTION

HEAVY DUTY

1шт.

5

245078A2

BUCKET

BUCKET 1860 mm (73 In); Machinery Item; Order From WholeGoods; Incl. 6, 7

1шт.

6

245108A1

EDGE, CUTTING

Welded On

1шт.

7

245109A2

EDGE, CUTTING

Side; Welded On

2шт.

REF

INSTRUCTION

EXTENSION

1шт.

8

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

4шт.

9

252645A2

HINGED SIDE

Used With 244554A2, 245078A2

1шт.

10

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

2шт.

11

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

12

825-1412

NUT,M12, Cl 8

2шт.

REF

INSTRUCTION

BOLT-ON CUTTING EDGE

1шт.

13

294681A1

EDGE, CUTTING

1860 mm (73 In)

1шт.

14

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

13шт.

15

329-1010

NUT,5/8"-11, G8

13шт.
