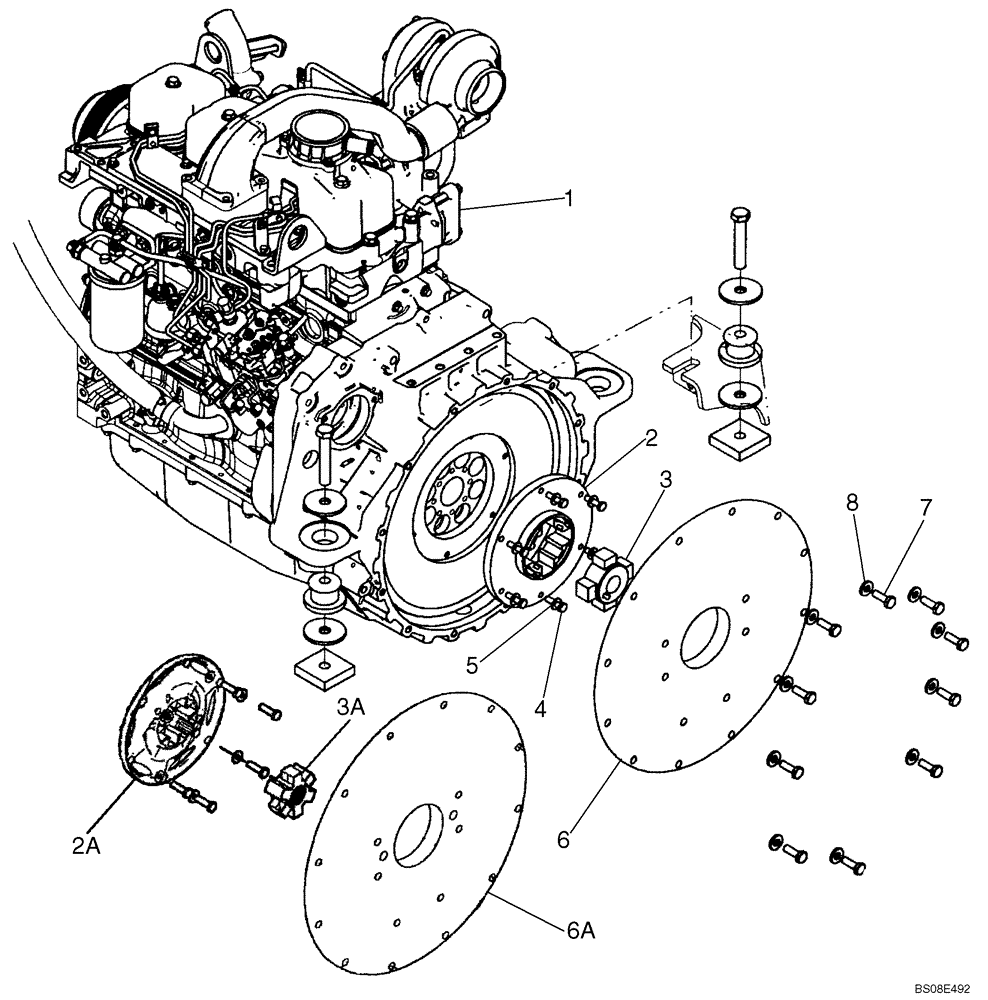

Запчасти Case 465 (02-07A) - ENGINE - PUMP DRIVE (WITH IN-LINE PUMP CONFIGURATION) (02) - ENGINE

REF

INSTRUCTION

WITH IN-LINE PUMP CONFIGURATION

1шт.

1

87039487

ENGINE

1шт.

1

87039487R

REMAN-REPLACEMENT EN,66kW, 4.5L, 4 Cylinders, W/ Turbocharger

465, T2 Eng., Aspiration LTC, BSN N7M452623

1шт.

1

87039487C

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84281976R

REMAN-BASIC ENGINE,4 Cylinders

465, T2 Eng., Aspiration LTC, BSN N7M452623

1шт.

1

84281976C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

87638779

SERVICE KIT

Kit Incl 1-8; Conversion Kit, Split Pump To In-Line Pump

1шт.

2

87024539

ELEMENT

Pump Drive, Use With Ref 3

1шт.

2a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive, Use With Ref 3A

1шт.

3

87024588

HUB

Pump Drive Star, Use With Ref 2

1шт.

3a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Star, Use With Ref 2A

1шт.

4

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

6

87519252

PROTECTION PLATE

Pump Mounting; Models Without Pilot Control; Replaces 87014858

1шт.

6a

87547003

PLATE

Pump Mounting; Models With Pilot Control

1шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

8

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.
