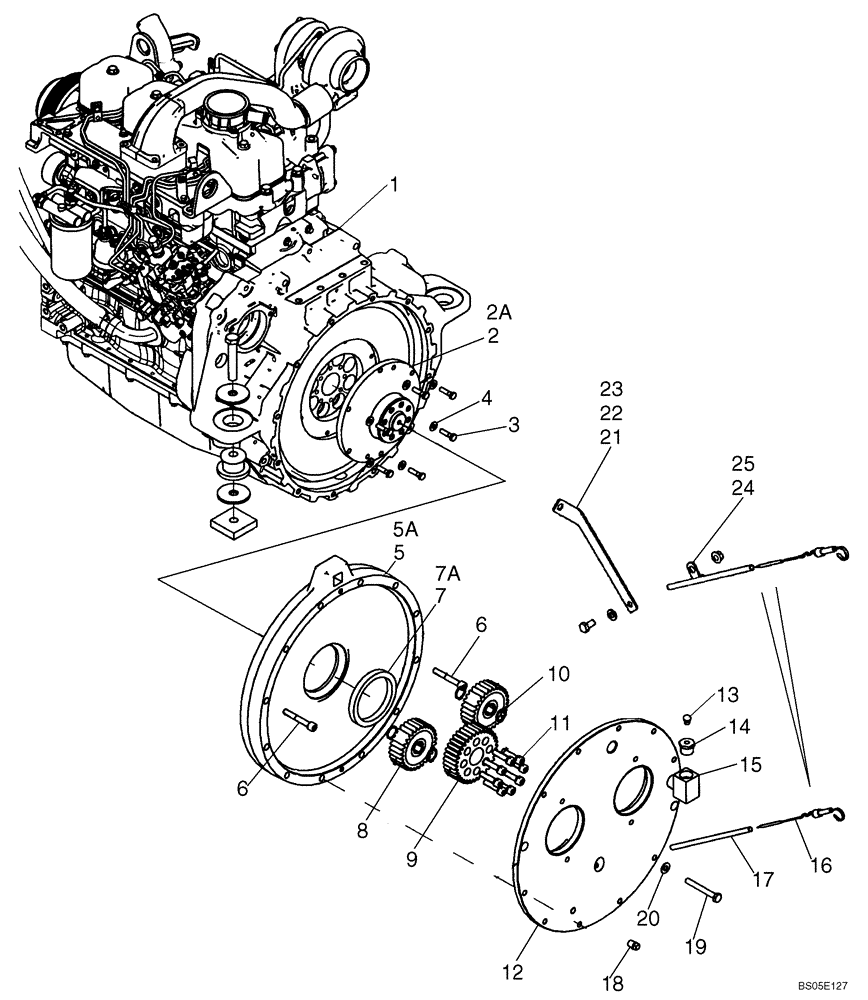

Запчасти Case 465 (02-07) - ENGINE - PUMP DRIVE (WITH SPLIT PUMP CONFIGURATION) (02) - ENGINE

REF

INSTRUCTION

MODELS WITH SPLIT PUMP CONFIGURATION

1шт.

1

87039487

ENGINE

1шт.

1

87039487R

REMAN-REPLACEMENT EN,66kW, 4.5L, 4 Cylinders, W/ Turbocharger

465, T2 Eng., Aspiration LTC, BSN N7M452623

1шт.

1

87039487C

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84281976R

REMAN-BASIC ENGINE,4 Cylinders

465, T2 Eng., Aspiration LTC, BSN N7M452623

1шт.

1

84281976C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

87638779

SERVICE KIT

Conversion Kit, Split Pump To In-Line Pump; See Fig 02-07A

1шт.

2

87049924

SPACER

Used With Ref 5, 7

1шт.

2a

87462294

SPACER

Used With Ref 5A, 7A

1шт.

3

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

5

87053351

BOX

Splitter; Used With Ref 2, 7

1шт.

5a

87462295

BOX

Splitter; Used With Ref 2A, 7A

1шт.

6

863-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

2шт.

7

87462626

SEAL

Used With Ref 2, 5; Replaces 9790499; See Service Bulletin NSL SB 006 06; High Runout Single Piece

1шт.

7a

87462383

SEAL

Used With Ref 2A, 5A; See Service Bulletin NSL SB 006 06; Two Piece Cassette Seal

1шт.

8

9701486

GEAR

29T

2шт.

9

87051053

GEAR

Pump Drive

1шт.

10

271877

SNAP RING,#93, Ext

4шт.

11

864-10040

HEX SOC SCREW,M10 x 40mm, Cl 8.8

8шт.

12

87053352

COVER

Splitter Box

1шт.

13

46566

BREATHER

Air Vent

1шт.

14

88873

BUSHING

3/4 To 1/8

1шт.

15

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

16

9635238

INDICATOR

Oil; If Used

1шт.

17

86606076

TUBE,9.525 mm OD x 262 mm L

Dipstick; If Used

1шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

19

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

10шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

21

87462692

BRACKET

Oil Dipstick Bracket; If Used

1шт.

22

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

23

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

24

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

25

43435

FLANGE NUT,Hex, M10 x 1.5

1шт.
