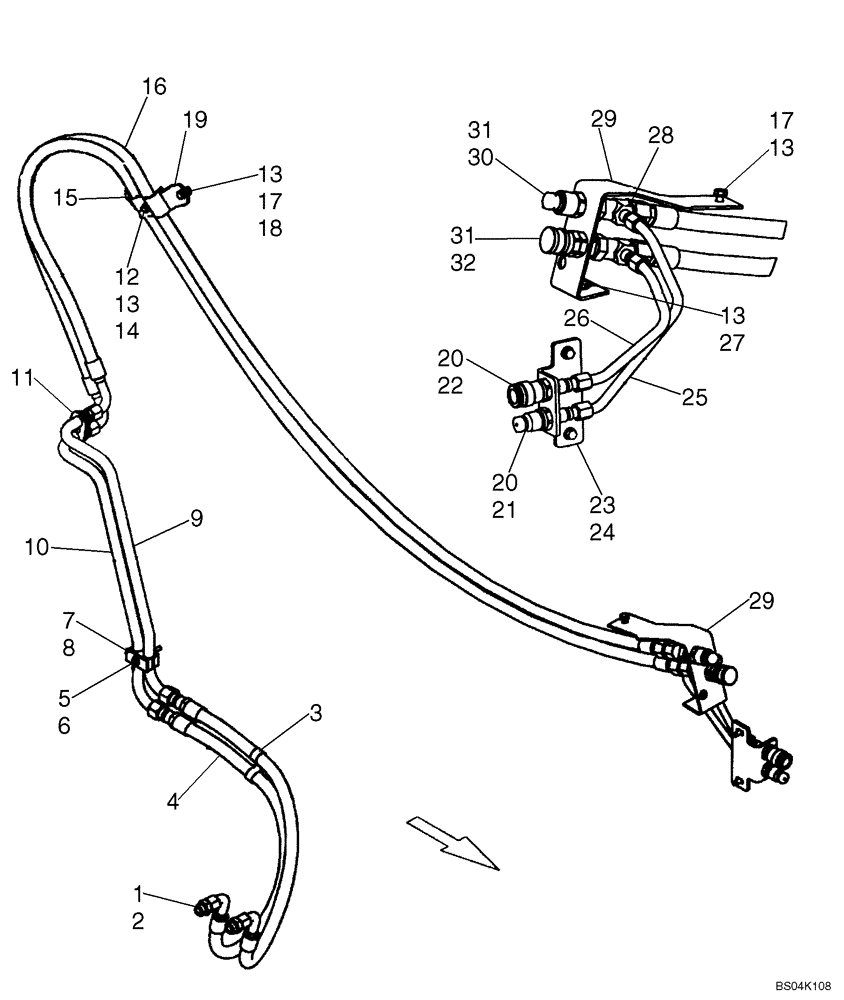

Запчасти Case 465 (08-16) - HIGH FLOW - AUXILIARY SYSTEM (08) - HYDRAULICS

1

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

87425569

HOSE ASSY.

2шт.

5

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

7

225529A1

CLAMP,Dual, 25.4mm ID

Clamp

1шт.

8

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Clamp Top

1шт.

9

87434421

HYD TUBE,25.40 mm OD x 584.6, 396.9 mm L

1шт.

10

87434412

HYD TUBE,25.40 mm OD x 595.3, 369.6 mm L

1шт.

11

87017999

SUPPORT

2шт.

12

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

Replaces 895-11010

5шт.

14

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

15

256688A2

CLAMP BRACKET

1шт.

16

87425570

HOSE ASSY.

2шт.

17

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

18

86512554

NUT,M10 x 1.5, Cl 10

2шт.

19

253476A1

BAR

Clamp Mounting

1шт.

20

595460

BHD LOCK NUT,7/8" - 14

2шт.

21

87417308

COUPLING, BREAK AWAY

1/2 Male

1шт.

22

393394A1

COUPLING, BREAK AWAY

1/2 Female

1шт.

23

87426968

BRACKET

High Flow Quick Disconnect Mounting

1шт.

24

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

25

87434093

HYD TUBE,15.88 mm OD x 292.1, 228.3 mm L

1шт.

26

87434092

HYD TUBE,15.88 mm OD x 182.7, 177.2 mm L

1шт.

27

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

28

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

2шт.

29

87434094

BRACKET

1шт.

30

87022672

QUICK MALE COUPLING

5/8 Male #16 BLKHD; Mating Connector For 87022672 (Male) Is 395267A1 (Female)

1шт.

31

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

32

87022671

COUPLING, QUICK, FEM

5/8 Female #16 BLKHD; Mating Conector For 87022671 (Female) Is 395268A1 (Male)

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Used To Secure Hose At Ref 3

1шт.
