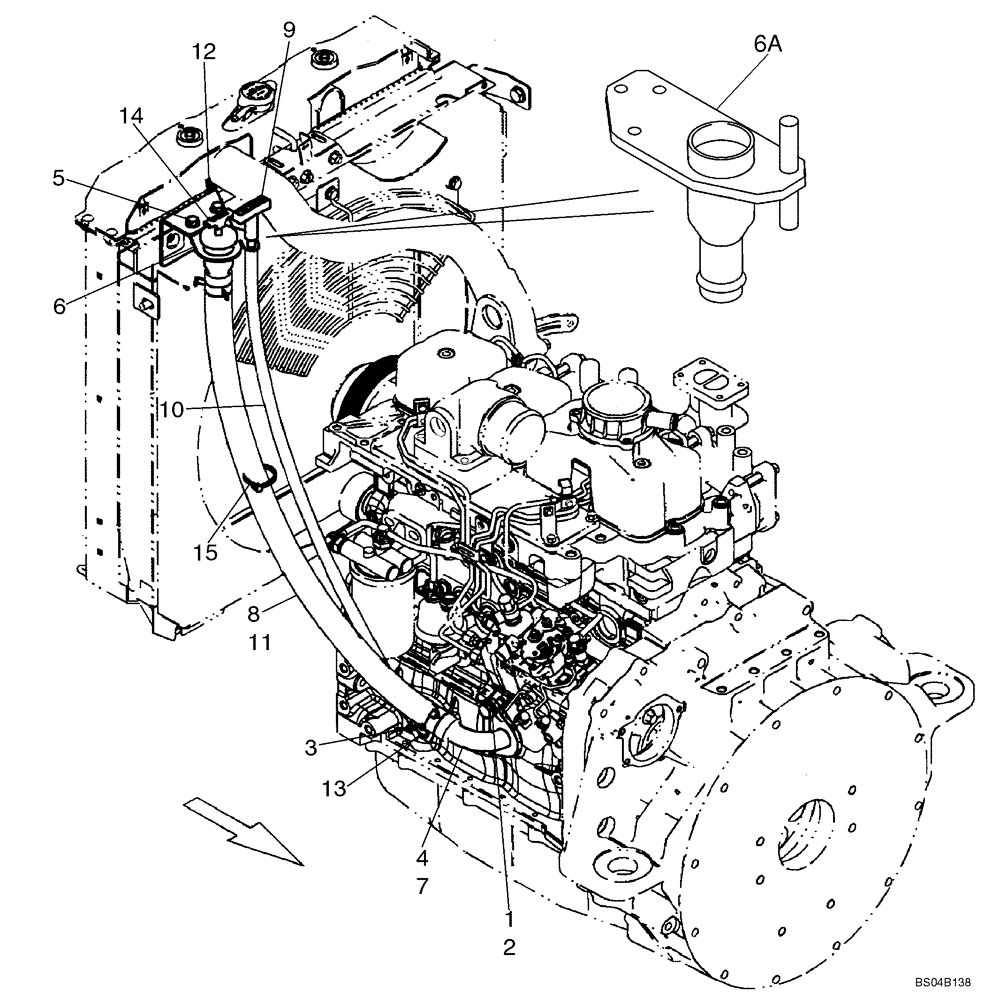

Запчасти Case 465 (02-06A) - OIL FILL, ENGINE (02) - ENGINE

1

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

2

892-11012

LOCK WASHER,M12

2шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

4

14458781

O-RING,1.549" ID x 0.103" Width

1шт.

5

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

2шт.

6

87050090

TUBE

Oil Fill; If Used

1шт.

6a

87458899

SUPPORT

Oil Fill; If Used

1шт.

7

87432267

TUBE,63 mm L

Oil Fill

1шт.

8

87432275

CLAMP,31.5mm - 38mm

35 mm

2шт.

9

87434315

DIPSTICK

1шт.

10

87434316

HOSE

Oil Fill

1шт.

11

87434317

HOSE ASSY.

Oil Fill

1шт.

12

87434847

ANGLE

Oil Fill Mounting

1шт.

13

87438418

TUBE,9.52 mm OD x 65 mm L

Oil Guage

1шт.

14

87445427

FILLER CAP

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
