Запчасти Case 465 (08-14) - HIGH FLOW (SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS

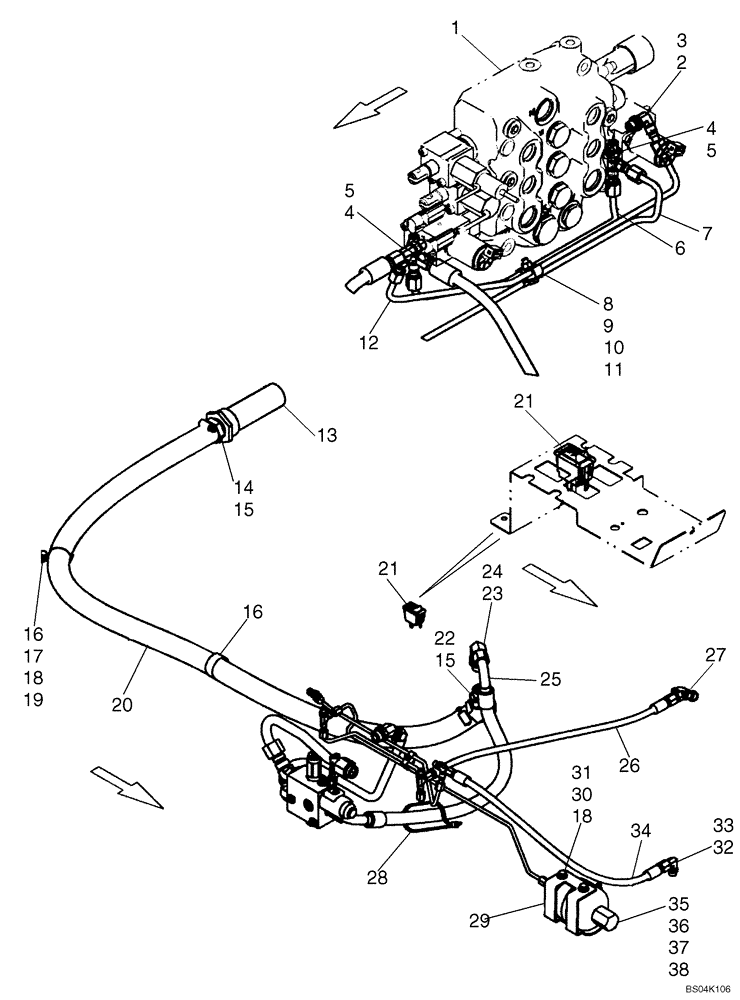

Схема запчастей Case 465 - (08-14) - HIGH FLOW (SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS
32
37
31
18
1
9
23
38
18
15
4
15
36
7
35
2
5
34
20
33
8
19
26
3
6
22
12
29
11
4
13
24
28
10
27
21
25
5
16
16
17
21
14
30

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITH SPLIT PUMP CONFIGURATION

1шт.

1

87583287

VALVE

Control Valve, Manual Control; Replaces 87527175; See Figure 08-21C

1шт.

87638780

SERVICE KIT

Conversion Kit, Split Pump to In-Line Pump,See Fig 08-14A Ref 15, 20, 23, 35-37, 40

1шт.

1

87527175

VALVE

Replaces 87446764; See Figure 08-08

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3

1шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 5

3шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 Tube CL6

1шт.

6

87438840

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

7

87458744

HYD TUBE,6.35 mm OD x 583.4, 124.1 mm L

Pilot Pressure

1шт.

8

608089

CLAMP

Double

1шт.

9

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

10

87030561

NUT,M6 x 1, Cl 8

1шт.

11

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

6.3 mm M6 Bolt

1шт.

12

87018051

TUBE,6.35 mm OD

1шт.

13

189310A1

STRAINER ASSY.

1шт.

14

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

1шт.

15

87039085

HOSE CLAMP,32mm - 54mm

2шт.

16

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

44.4 mm 3/8 in Bolt

2шт.

17

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

1-3шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

1шт.

20

87422425

HOSE ASSY.

1шт.

21

87414769

SWITCH

High FLow

1шт.

22

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

23

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 24

1шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

87029818

HOSE ASSY.

1шт.

26

87445655

HOSE ASSY.

Charge Pressure

1шт.

27

87438766

TEE

3/8

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

29

87439065

BRACKET

Accumulator Mounting

1шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

32

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 33

1шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

87427370

HOSE ASSY.

1шт.

35

86624732

ACCUMULATOR

1шт.

36

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

37

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

Incl. 38

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
