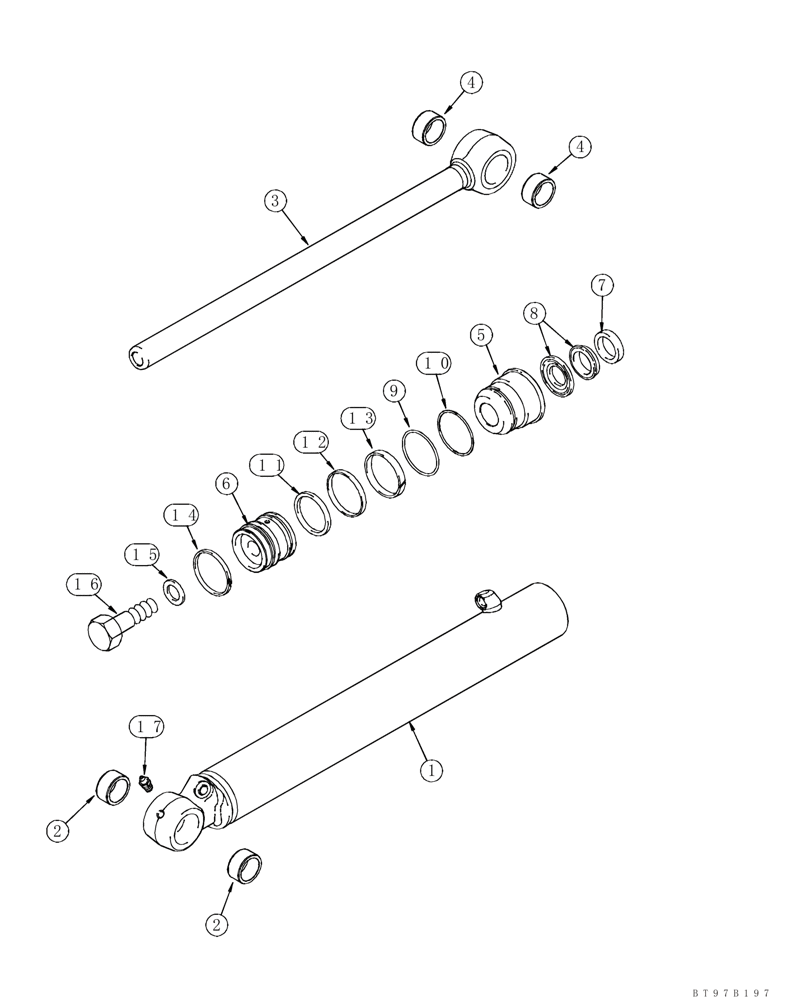

Запчасти Case 465 (08-12) - CYLINDER - LOADER BUCKET (08) - HYDRAULICS

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

70 ID x 525 mm strk; Loader Bucket; Incl. 1 - 17

2шт.

258426A3R

REMAN-HYD CYLINDER

465 BSN N7M452623

2шт.

258426A3C

CORE-HYD CYLINDER

Return Number

2шт.

1

258427A2

HYD CYL SLEEVE

Incl. 2

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

3

258791A1

PISTON ROD

35 mm OD; Incl. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

258434A2

CYLINDER END CAP

Packing

1шт.

6

258432A4

JACK PISTON

1шт.

275503A2

SEAL KIT

Incl. 7 - 14

1шт.

7

226847A1

WIPER SEAL

1шт.

8

279532A1

SEAL

Not Serviced Separately; Rod And Buffer Seal; Order 275503A2

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

11

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

Piston

1шт.

12

G104439

RING

Loader

1шт.

13

G105187

RING

1шт.

14

258546A2

RING

Cast Iron

1шт.

86982436

SPECIAL BOLT,SEMS Hex, 7/8" - 14 x 2 - 1/2"

Incl. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Washer

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
