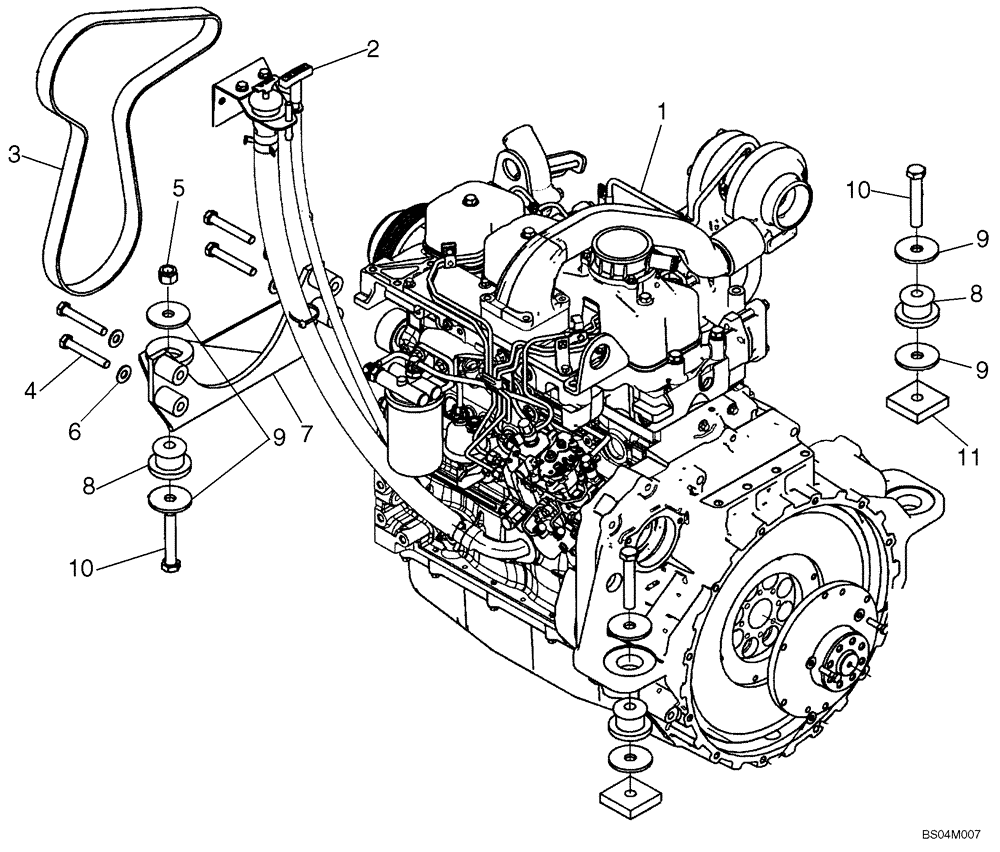

Запчасти Case 465 (02-06) - ENGINE - MOUNTING (02) - ENGINE

1

87039487

ENGINE

Engine Assy

1шт.

1

87039487R

REMAN-REPLACEMENT EN,66kW, 4.5L, 4 Cylinders, W/ Turbocharger

465, T2 Eng., Aspiration LTC, BSN N7M452623

1шт.

1

87039487C

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84281976R

REMAN-BASIC ENGINE,4 Cylinders

465, T2 Eng., Aspiration LTC, BSN N7M452623

1шт.

1

84281976C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

2

REF

INSTRUCTION

Remote Oil Fill; See Figure 02-06A

1шт.

3

86982450

V-BELT

CNH Name And Part Number On Belt

1шт.

3

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

No Longer Used, Order 85826230, Used With Pulley J914459, See Figure 02-35

1шт.

3

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

Used With Pulley J914459

1шт.

4

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

412066

NUT,M16 x 2.0, Cl 8

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

7

87041763

ENGINE MOUNT

1шт.

8

A140221

MOUNTING PARTS

3шт.

9

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

6шт.

10

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

3шт.

11

390350A1

PLATE

2шт.
