Запчасти Case 465 (08-06) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

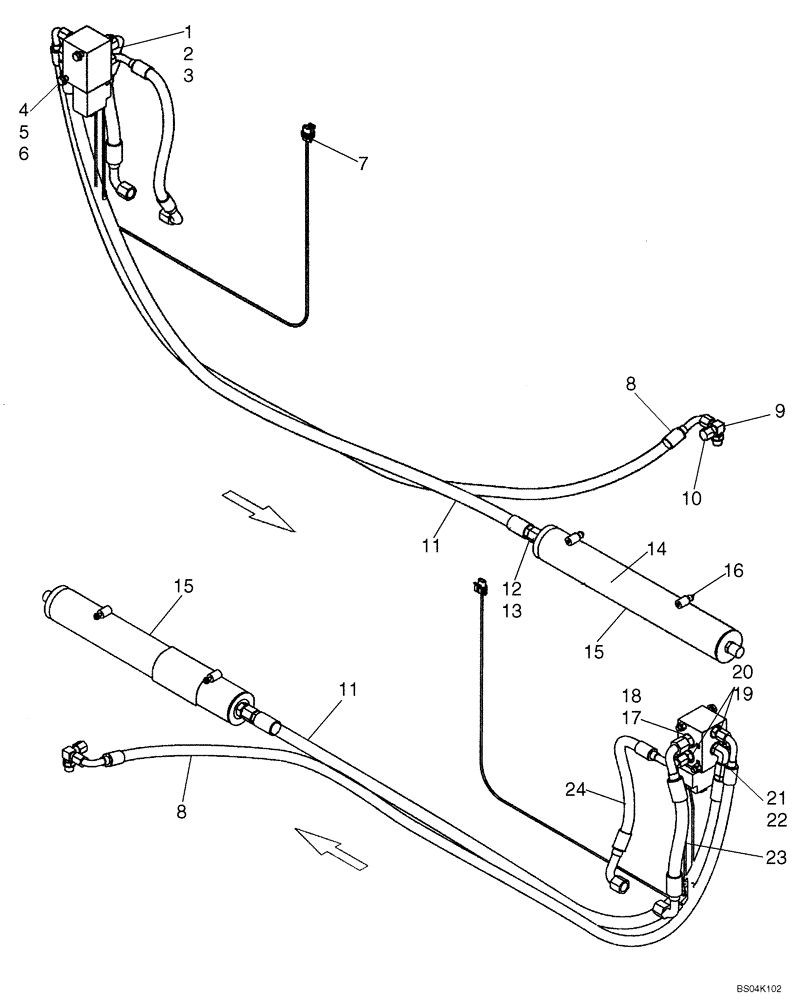

Схема запчастей Case 465 - (08-06) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS
22
5
11
13
12
8
24
19
6
16
1
14
15
9
11
3
2
18
15
7
17
10
4
21
8
20

Артикул

Название

Примечание

Количество

1

87428444

VALVE

Ride Control; Solenoid; Incl. 2, 3

1шт.

2

87424684

SEAL KIT

Not Illustrated

1шт.

3

87424685

REPAIR KIT

Solenoid; Not Illustrated

1шт.

4

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

2шт.

7

310838A1

HARNESS

Ride Control

1шт.

8

87437220

HOSE ASSY.

Tank To Port T

1шт.

9

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

3/8 Tube

1шт.

10

574342

CAP,9/16" - 18 JIC

1шт.

11

87437219

HOSE ASSY.

Accumulator To Port P

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System; See Figure 09-44 For Ride Control Decals

1шт.

15

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

16

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

17

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl. 18

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 20

2шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl. 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

87438589

HOSE ASSY.

Lift Cylinder Base To Port C2

1шт.

24

87458975

HOSE ASSY.

365mm (14-3/8 in) Hose; Lift Cylinder Base To Port C1

1шт.

Выбрано товаров: 24
