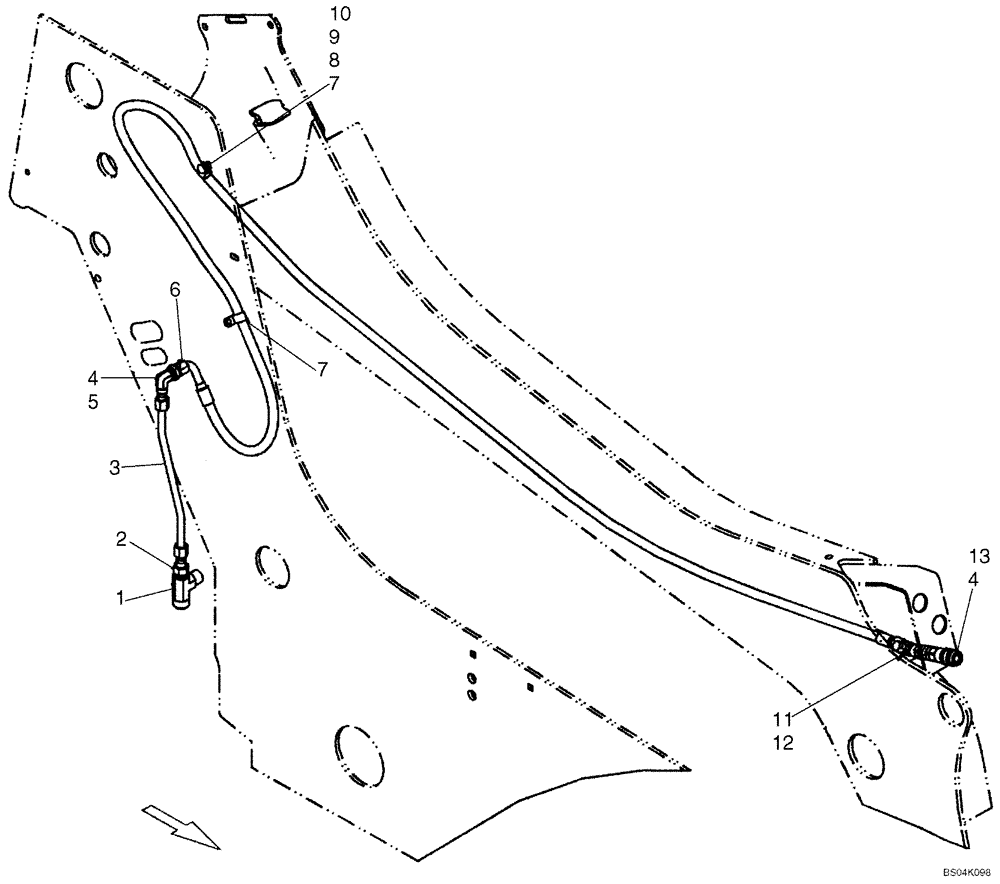

Запчасти Case 465 (08-05A) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

1

218-566

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.

2

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.

3

87427228

HYD TUBE,12.70mm OD x 348, 66.40mm L

1шт.

4

524036

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

5

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

6

87426130

HOSE ASSY.

1шт.

7

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

(19 mm; M8 Bolt)

2шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

11

574342

CAP,9/16" - 18 JIC

1шт.

12

218-5492

HYD CONNECTOR,1/2" x 1/2" x 3/8" Run, Swivel 37 Degree Fitting

1шт.

13

87019286

COUPLING

.38 Fem

1шт.
