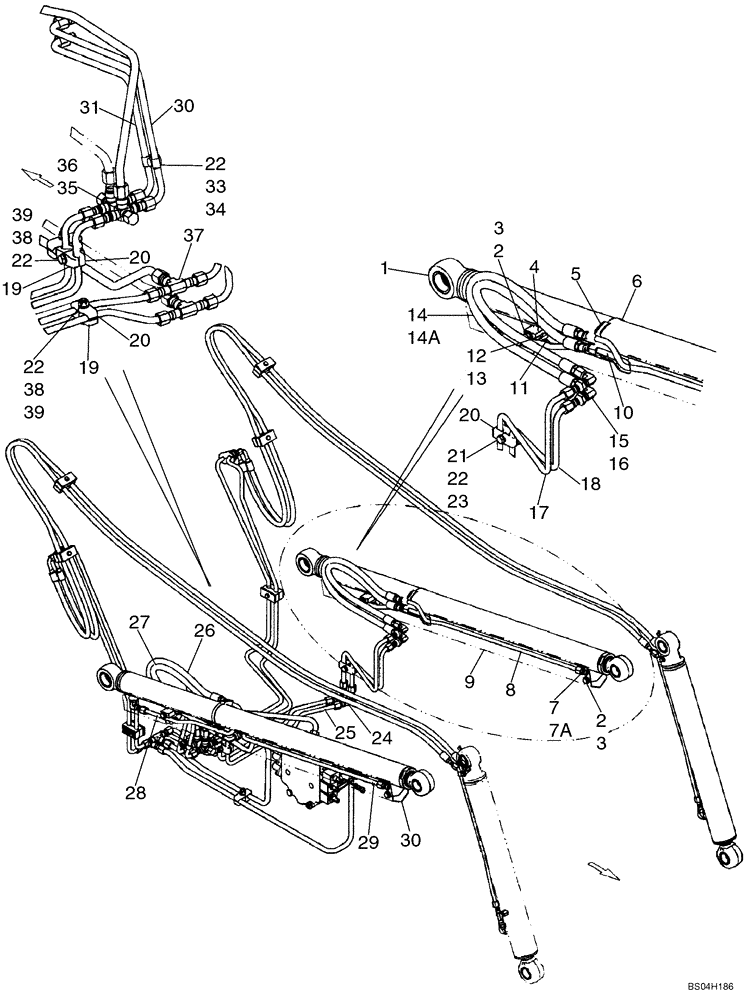

Запчасти Case 465 (08-01) - HYDRAULICS - LOADER LIFT (WITH SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS

REF

INSTRUCTION

MODELS WITH SPLIT PUMP CONFIGURATION

1шт.

1

139091A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke

Lift; 63.5 Dia Cylinder, 44.4 Dia Rod; See Figure 08-11

2шт.

1

139091A3R

REMAN-HYD CYLINDER

465 BSN N7M452623

2шт.

1

139091A3C

CORE-HYD CYLINDER

Return Number

2шт.

1

300873A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 1245mm Stroke

Lift; 63.5 Dia Cylinder, 50.8 Dia Rod; See Fig 08-11A

2шт.

1

300873A2R

REMAN-HYD CYLINDER

465 SKID STEER BSN N7M452623, Lift (1/05-12/07)

2шт.

1

300873A2C

CORE-HYD CYLINDER

Return Number

2шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

4

197509A1

PROTECTOR

2шт.

5

255245A1

BLOCK

Dual Tube Saddle

2шт.

6

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 7A

2шт.

7a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

253311A4

TUBE,843, 83 mm Length

Left Hand Lift Cylinder Rod End

1шт.

9

253313A1

PROTECTOR

Lift Cylinder Left Hand

1шт.

10

253309A4

TUBE,443, 62 mm Length

Left Hand Lift Cylinder Base End

1шт.

11

197508A1

HOLDER

2шт.

12

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

13

832-41408

NUT,M8 x 1.25, Cl 10

2шт.

14

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 14A

2шт.

14a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

524036

BHD LOCK NUT,Blkhd, 3/4"-16

4шт.

16

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

17

87434196

HYD TUBE,12.7 mm OD

Left Hand Lift, Raise

1шт.

18

87425293

HYD TUBE,12.7 mm OD x 305, 194 mm L

Left Hand Lift, Lower

1шт.

19

D120679

CLAMP,Tube, 1/2"

1/2

3шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

21

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

23

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square, M10 x 1.5

1шт.

24

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

25

419000A1

TUBE

Lift, Left Hand

2шт.

26

252962A2

HOSE

Lift Cylinder Rod End

2шт.

27

252961A2

HOSE

Lift Cylinder Base End

2шт.

28

253305A4

TUBE,443, 94 mm Length

Right Hand Lift Cylinder Base End

1шт.

29

253307A4

TUBE,843, 83 mm Length

Right Hand Lift Cylinder Rod End

1шт.

30

253312A1

PROTECTOR

Lift Cylinder Right Hand

1шт.

31

87425295

HYD TUBE,12.7 mm OD x 298.5, 194.5 mm L

Right Hand Lift, Lower

1шт.

32

87425294

HYD TUBE,12.7 mm OD x 304.3, 276.8 mm L

Right Hand Lift, Raise

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

35

280107A1

TEE

With Side Outlet

2шт.

36

218-755

CAP,37 Degree, 3/4"-16

2шт.

37

218-1584

TEE,37 Degree, 3/4"-16 x 7/8"-14, Br

2шт.

38

86512554

NUT,M10 x 1.5, Cl 10

2шт.

39

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.
