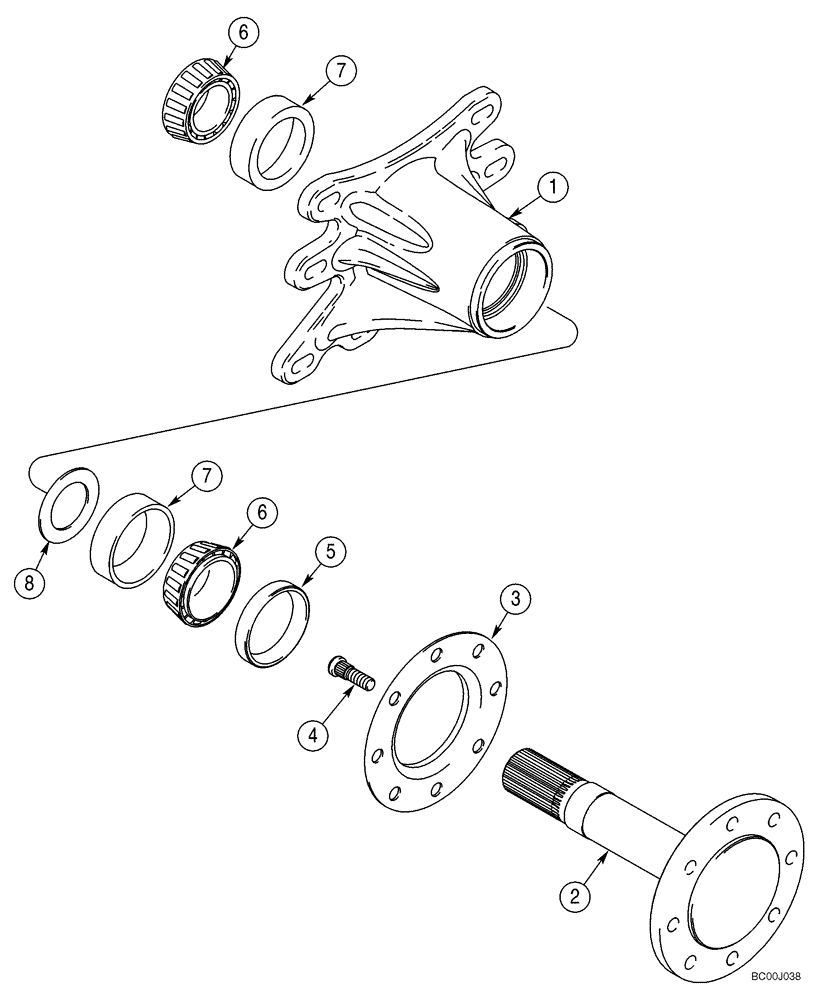

Запчасти Case 465 (06-34) - AXLE ASSY (06) - POWER TRAIN

339431A2

AXLE

Incl. 1 - 8

4шт.

1

339429A2

HUB

1шт.

339428A3

AXLE

Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Axle

1шт.

3

175762A1

PROTECTOR

1шт.

4

191048A2

STUD

M16; Plain; Grade 9.8; If Used; See Figure 06-36 For Nut

8шт.

4

87618650

STUD

M16; Phosphate Coated; Grade 9.8; If Used

8шт.

5

341841A2

OIL SEAL,76.2mm ID x 109.95mm OD x 14mm Thk

1шт.

6

227488A1

ROLLER BEARING,63.5mm ID x 22mm W

2шт.

7

227489A1

BEARING, ROLLER,63.5 mm ID x 18.824 mm

2шт.

8

197804A1

WASHER,64.5mm ID x 100.5mm OD x 3.2mm Thk

1шт.

NSS

NOT SOLD SEPARAT

Grease; Not Illustrated

1шт.
