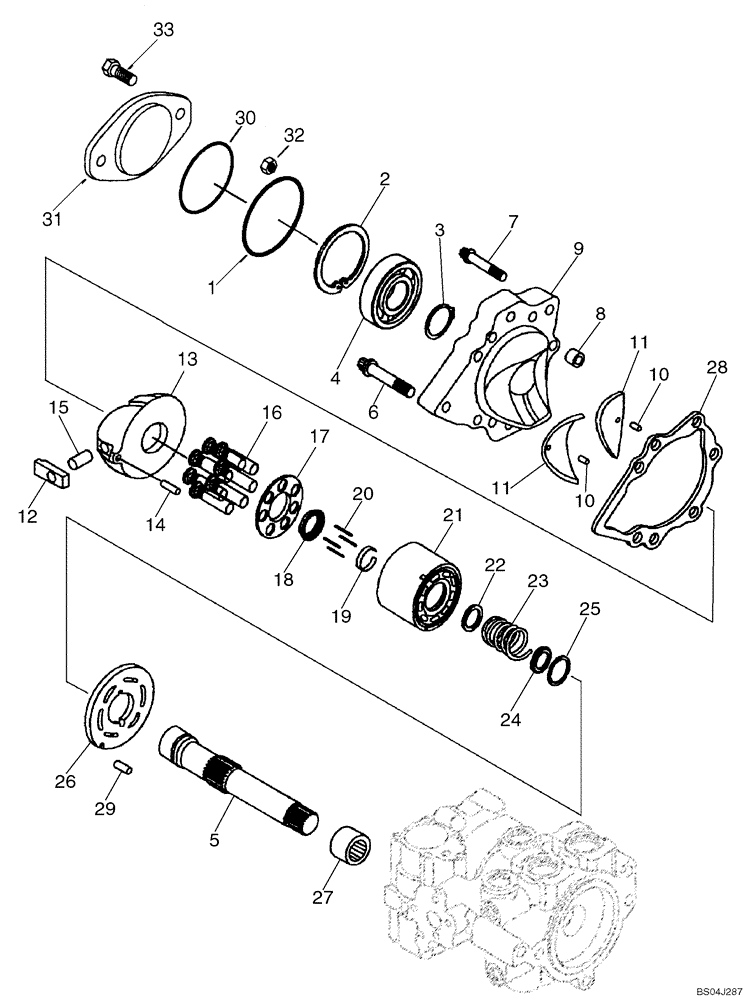

Запчасти Case 465 (06-33) - PUMP, TANDEM (87350025) (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
Rear Pump
1шт.
87350025
PUMP,46 CC
Incl. 2 - 32; Incl. Parts On Figure 06-28 - 06-33
1шт.
87350025R
REMAN-HYD PUMP
REMANUFACTURED HYDRAULIC PUMP
1шт.
87350025C
CORE-HYDRAULIC PUMP
Return Number, HYDRAULIC PUMP
1шт.
1
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
2
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
1шт.
3
100-11137
SNAP RING,#137, Ext
1шт.
4
A29183
BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W
1шт.
5
87039623
SHAFT
Shaft
1шт.
6
223677A1
SCREW,Torx, 7/16"
7/16 in
6шт.
7
223680A1
SPECIAL BOLT,Torx, 3/8"
3/8 in
1шт.
8
N13994
SPACER
1шт.
87050526
COVER ASSY
Incl. Ref 9 - 11
1шт.
9
NSS
NOT SOLD SEPARAT
Cover; Incl. 10, 11
1шт.
10
193494A1
PIN, ROLL
2шт.
11
87050524
JOURNAL
2шт.
12
N13224
SLEEVE
1шт.
13
87050523
PLATE ASSY.
1шт.
14
324610A1
PIN
1шт.
15
N13254
PIN
1шт.
402366A1
KIT
Cylinder Block; Components Not Serviced Separately; Incl. 16 - 25
1шт.
16
NSS
NOT SOLD SEPARAT
Piston
14шт.
17
NSS
NOT SOLD SEPARAT
Retainer
2шт.
18
115942A1
GUIDE
Guide
2шт.
19
115943A1
SNAP RING
Ring, Retaining
2шт.
20
110873A1
PIN,2.38mm OD x 33.53mm L
6шт.
21
NSS
NOT SOLD SEPARAT
Block, Cylinder
2шт.
22
115946A1
WASHER
Washer
2шт.
23
115948A1
SPRING
2шт.
24
115950A1
WASHER
Washer
2шт.
25
NSS
NOT SOLD SEPARAT
Ring, Retaining
2шт.
26
128929A1
LARGE PLATE
PLATE, LARGE
1шт.
27
NSS
NOT SOLD SEPARAT
Bearing, Needle
1шт.
28
H436704
GASKET,0.79mm Thk
1шт.
29
38-11207
LOCK PIN,4.76mm OD x 11.11mm L, Slotted
1шт.
30
87013729
O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro
Not Included In Tandem Pump Assy; Included in 140008A1 Seal Kit
1шт.
31
100703A1
PLATE, SPACER
PLATE,SPACER
2шт.
32
425-108
NUT,1/2" - 13, Gr 5
2шт.
33
13-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
2шт.
140008A1
GASKET KIT
Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 34
1шт.
Выбрано товаров: 40
