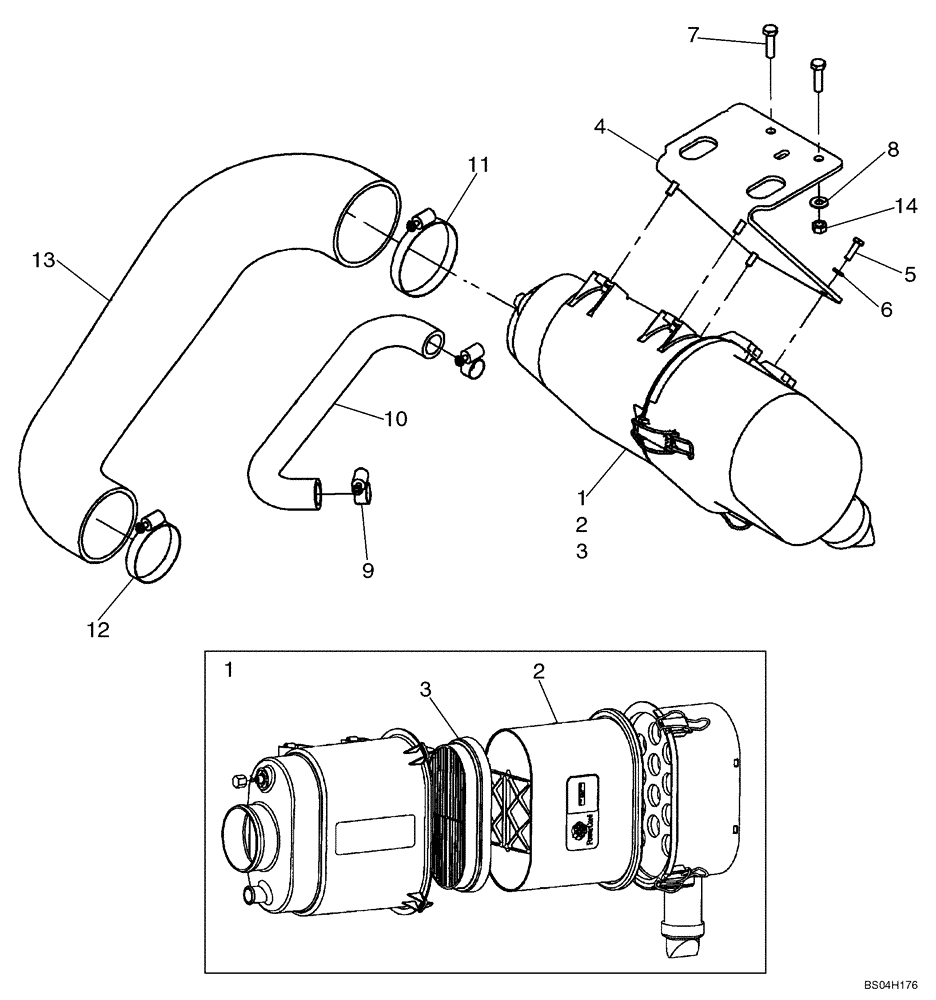

Запчасти Case 465 (02-04) - ENGINE - AIR CLEANER (02) - ENGINE

1

87036648

AIR FILTER

Incl. 2, 3

1шт.

2

87037984

ELEMENT

Powercore

1шт.

3

87037985

ELEMENT

1шт.

4

87046722

BRACKET

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

9

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

No Longer Used, Order 514920

2шт.

9

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

10

87352019

HOSE,22.20 mm ID x 294.0 mm SAE 30R2 TYPE 1

Replaces 87046614

1шт.

11

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

12

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

1шт.

13

87352003

INTAKE AIR HOSE,76.20 mm ID, 88.90 mm ID x 473.70, SAE J20R4

Air Cleaner; Replaces 87046613

1шт.

14

825-1408

NUT,M8, Cl 8

2шт.

15

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator

1шт.
