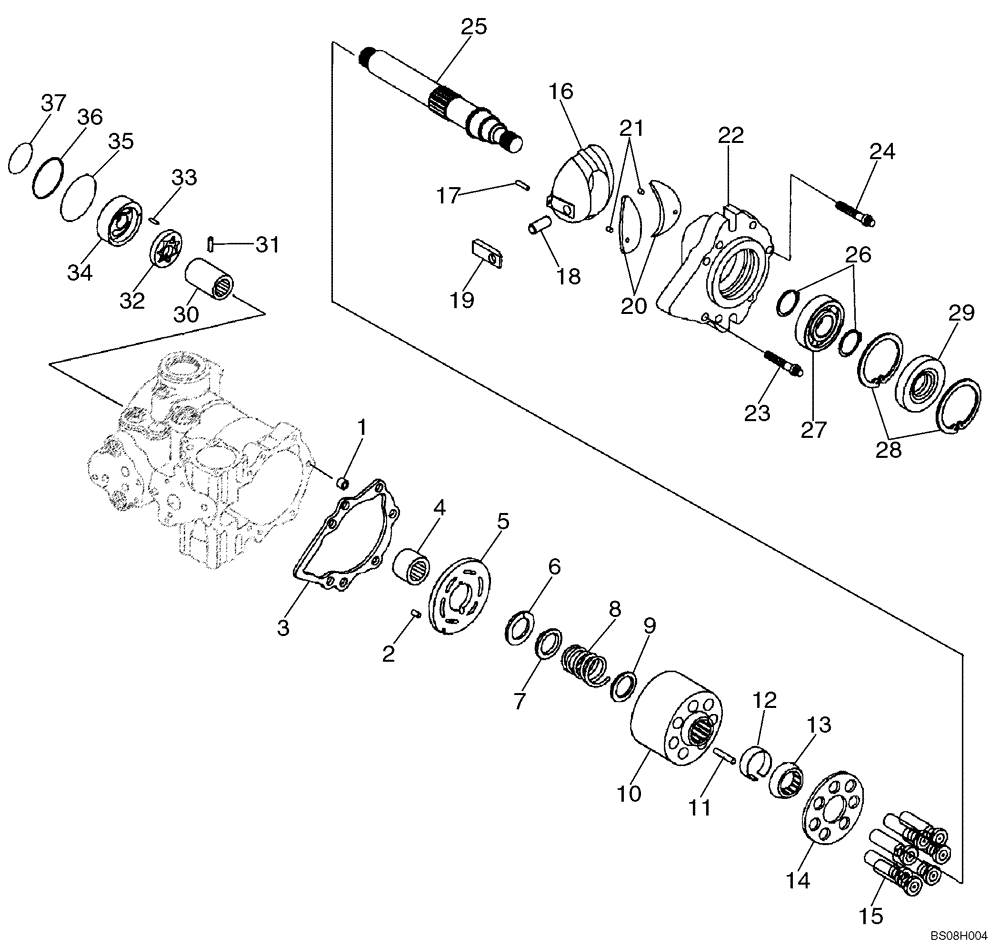

Запчасти Case 465 (06-30) - PUMP, TANDEM (87350025) (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
*
Front Pump
1шт.
87350025
PUMP,46 CC
Incl. 1 - 37; Incl. Parts On Figure 06-28 - 06-33
1шт.
87350025R
REMAN-HYD PUMP
REMANUFACTURED HYDRAULIC PUMP
1шт.
87350025C
CORE-HYDRAULIC PUMP
Return Number, HYDRAULIC PUMP
1шт.
1
N13994
SPACER
1шт.
2
38-11207
LOCK PIN,4.76mm OD x 11.11mm L, Slotted
1шт.
3
H436704
GASKET,0.79mm Thk
Included in 140008A1 Seal Kit
1шт.
4
1277297C1
NEEDLE BEARING
1шт.
5
128928A1
LARGE PLATE
PLATE, LARGE
1шт.
87039625
KIT
Cylinder Block; Kit Includes Cylinder Block Parts For Rear Pump; Incl. 6 - 15
1шт.
6
NSS
NOT SOLD SEPARAT
Ring, Retaining
2шт.
7
115950A1
WASHER
Washer
2шт.
8
115948A1
SPRING
2шт.
9
115946A1
WASHER
Washer
2шт.
10
NSS
NOT SOLD SEPARAT
Block, Cylinder
2шт.
11
110873A1
PIN,2.38mm OD x 33.53mm L
6шт.
12
115943A1
SNAP RING
Ring, Retaining
2шт.
13
115942A1
GUIDE
2шт.
14
NSS
NOT SOLD SEPARAT
Retainer
2шт.
15
NSS
NOT SOLD SEPARAT
Piston
14шт.
16
87050523
PLATE ASSY.
1шт.
17
324610A1
PIN
1шт.
18
N13254
PIN
1шт.
19
N13224
SLEEVE
1шт.
87050525
COVER ASSY
Incl. 20 - 22
1шт.
20
87050524
JOURNAL
2шт.
21
193494A1
PIN, ROLL
2шт.
22
NSS
NOT SOLD SEPARAT
1шт.
23
223677A1
SCREW,Torx, 7/16"
7/16 in
6шт.
24
223680A1
SPECIAL BOLT,Torx, 3/8"
3/8 in
1шт.
25
N13244
SHAFT
1шт.
26
100-11137
SNAP RING,#137, Ext
2шт.
27
A29183
BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W
2шт.
28
103-21281
SNAP RING,66.92mm ID x 2.36mm W, Int
1шт.
29
N14103
SEAL
Lip; Included in 140008A1 Seal Kit
1шт.
30
N13234
COUPLING, BREAK AWAY
1шт.
31
N13262
PIN
2шт.
32
N13247
GEAR-SET
1шт.
33
181680A1
PIN,3/16" OD x 13/16" L
1шт.
34
N13999
PLATE,3.9985" OD x 1.58" ID
1шт.
35
H437190
O-RING
Included in 140008A1 Seal Kit
1шт.
36
238-6238
O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro
Included in 140008A1 Seal Kit
1шт.
37
H435776
O-RING,44.04mm ID x 51.10mm OD x 7.06mm W
Included in 140008A1 Seal Kit
1шт.
Выбрано товаров: 43
