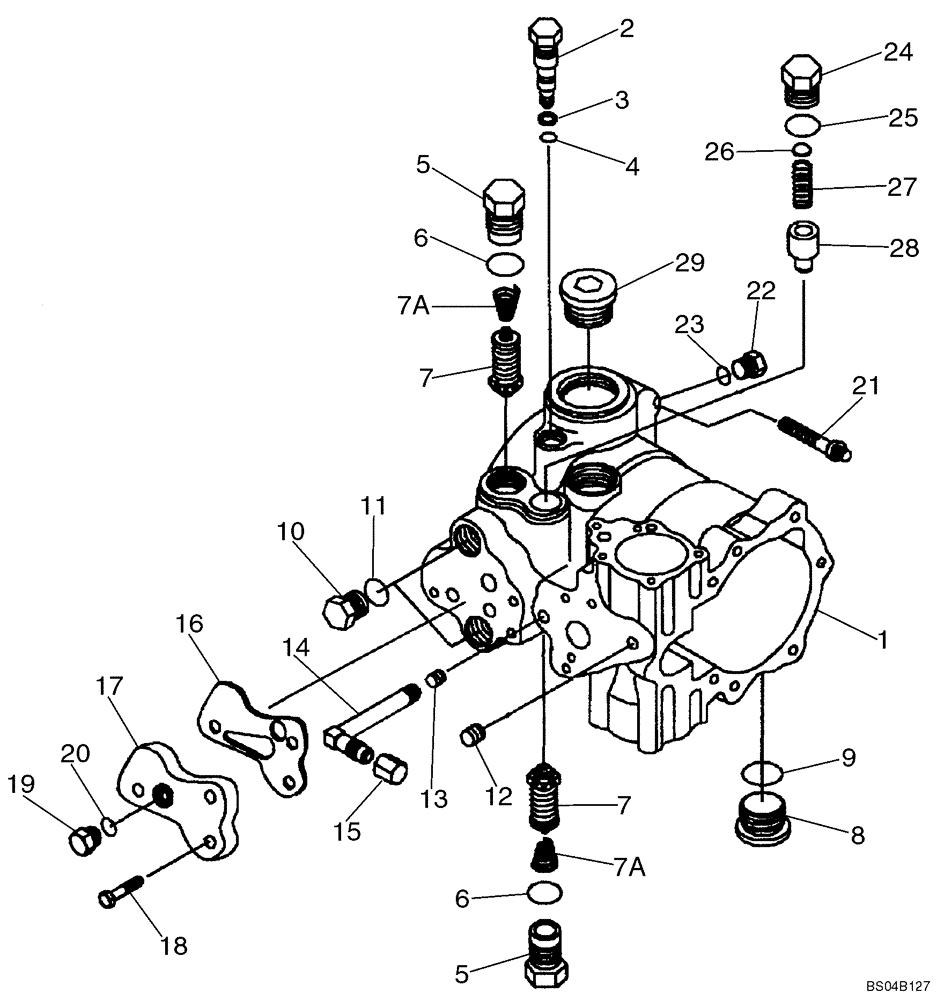

Запчасти Case 465 (06-28) - PUMP, TANDEM (87350025) (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
Front Pump
1шт.
87350025
PUMP,46 CC
Incl. 1 - 29; Incl. Parts On Figure 06-28 - 06-33
1шт.
87350025R
REMAN-HYD PUMP
REMANUFACTURED HYDRAULIC PUMP
1шт.
87350025C
CORE-HYDRAULIC PUMP
Return Number, HYDRAULIC PUMP
1шт.
1
402364A1
HOUSING
1шт.
2
87039612
BY-PASS VALVE
Incl. Ref 3, 4
1шт.
3
S99877
BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk
1шт.
4
86993475
O-RING
3/8 ID x 1/16; Included in 140008A1 Seal Kit
1шт.
105720A1
VALVE
Incl. 5 - 7
2шт.
5
NSS
NOT SOLD SEPARAT
Plug
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Included in 140008A1 Seal Kit
1шт.
7
NSS
NOT SOLD SEPARAT
Valve, Relief
1шт.
7a
86993468
SPRING
1шт.
8
9841223
PLUG,1-1/16" - 12 ORB
Incl. 9
2шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
76349
PLUG,9/16" - 18 ORB
Incl. 11
2шт.
11
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
12
F23137
PLUG
1шт.
13
86993479
PIPE PLUG,1/16" - 27
Pipe
1шт.
14
86993480
ELBOW
1шт.
15
86993467
CAP
1шт.
16
303709A1
GASKET
Filter Adapter; Included in 140008A1 Seal Kit
1шт.
17
101462A1
ADAPTER
Suction Line Filter
1шт.
18
26-516
BOLT,Hex, 5/16" - 18 x 1", Gr 8
3шт.
19
76349
PLUG,9/16" - 18 ORB
Incl. 20
1шт.
20
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
21
166-89
12 PT SCREW,1/2" - 13 x 2", Gr 8
2шт.
22
9672438
PLUG,7/16" - 20 ORB
Incl. 23
1шт.
23
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
24
87039611
PLUG
Charge Relief; Incl. 25
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Included in 140008A1 Seal Kit
1шт.
26
H407767
KIT
Shim
1шт.
27
244898A1
SPRING
1шт.
28
V38371
VALVE
Charge Relief
1шт.
29
NSS
NOT SOLD SEPARAT
Plug
1шт.
140008A1
GASKET KIT
Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 3, 4, 6, 16, 25
1шт.
Выбрано товаров: 36
