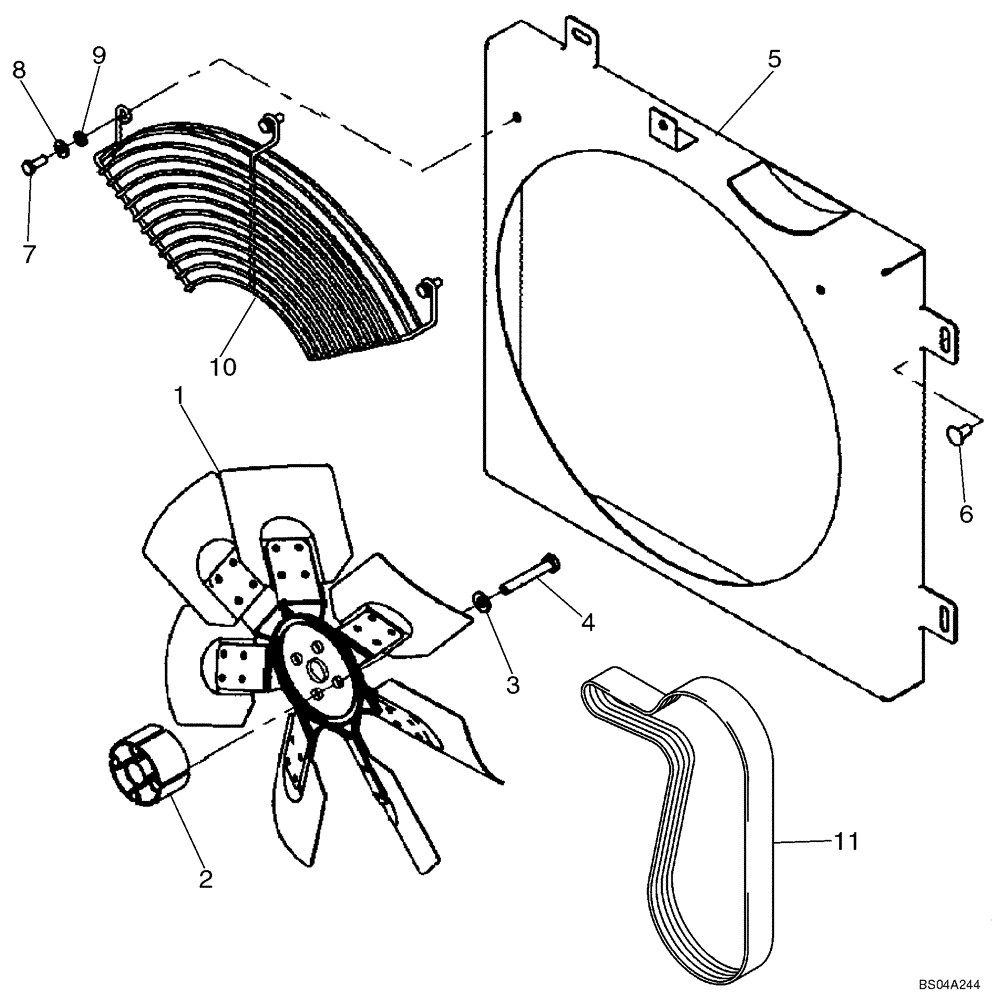

Запчасти Case 465 (02-02) - FAN - FAN BELT (02) - ENGINE

1

87025470

FAN

480 mm (18 29/32 in.) Dia.; If Used

1шт.

1

87737293

FAN,7 Blades, 480mm OD

480 mm (18 29/32 in.) Dia.; If Used

1шт.

1

87680032

FAN,6 Blades, 517.9mm OD

518 mm; 24 Degree; Replaces 238344A1

1шт.

2

A184545

SPACER

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

5

87046890

SHROUD ASSY.

Used With 480 mm Fan; If Used

1шт.

5

87461514

SHROUD ASSY.

Used With 518 mm Fan; If Used

1шт.

6

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

87046887

GUARD

Fan

1шт.

11

86982450

V-BELT

CNH Name And Part Number On Belt

1шт.

11

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

No Longer Used, Order 85826230, Used With Pulley J914459, See Figure 02-35

1шт.

11

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

Used With Pulley J914459

1шт.
