Запчасти Case 465 (06-04G) - JOYSTICK CONTROL, ASSEMBLY, RIGHT HAND - H PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN

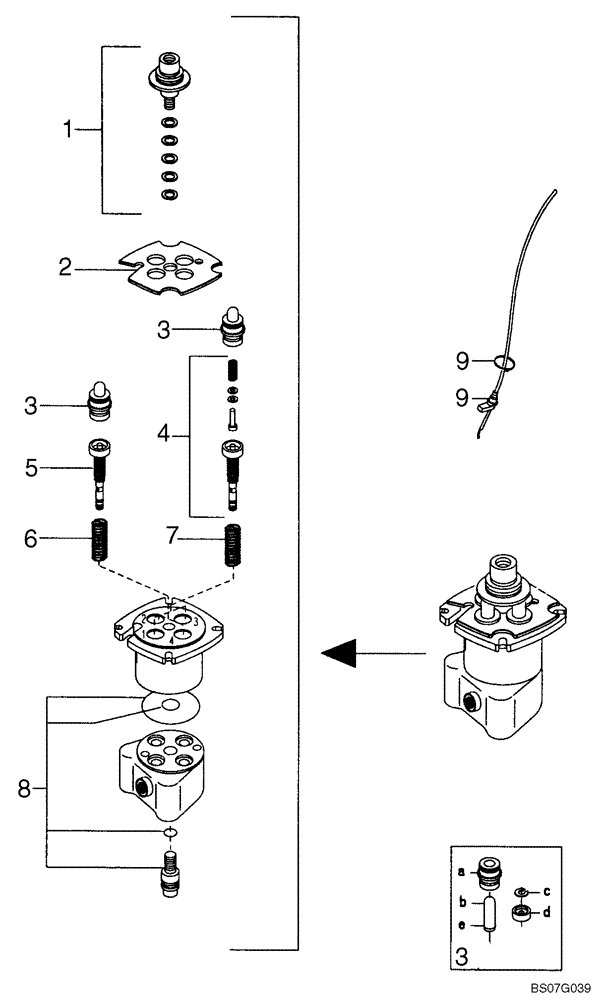

Схема запчастей Case 465 - (06-04G) - JOYSTICK CONTROL, ASSEMBLY, RIGHT HAND - H PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN
4
9
2
8
9
5
3
3
1
3
7
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITH PILOT CONTROL

1шт.

87357241

HYDRAULIC VALVE

Joystick Control; H Pattern Right Hand; Incl. 1 - 4, 5 And 6 - 9; If Used

1шт.

87740389

HYDRAULIC VALVE

Joystick Control; H Pattern Right Hand; Incl. 1 - 3, 4A, 5A And 6 - 9

1шт.

1

87548833

SERVICE KIT

Bent Lever Cardan

1шт.

2

87548835

PLATE

Retaining, Standard

1шт.

3

87614023

KIT

Hollow

2шт.

4

87614017

REGULATOR

With Plunger; If Used

2шт.

4a

84124854

KIT

Kit, With Plunger

2шт.

5

87614024

REGULATOR

If Used

1шт.

5a

87594866

SERVICE KIT

1шт.

6

87614019

SPRING KIT

Heavy

1шт.

7

87614020

SPRING

Medium

1шт.

8

87548848

SERVICE KIT

Standard Seal

1шт.

9

87548874

SERVICE KIT

Cable

1шт.

Выбрано товаров: 14
