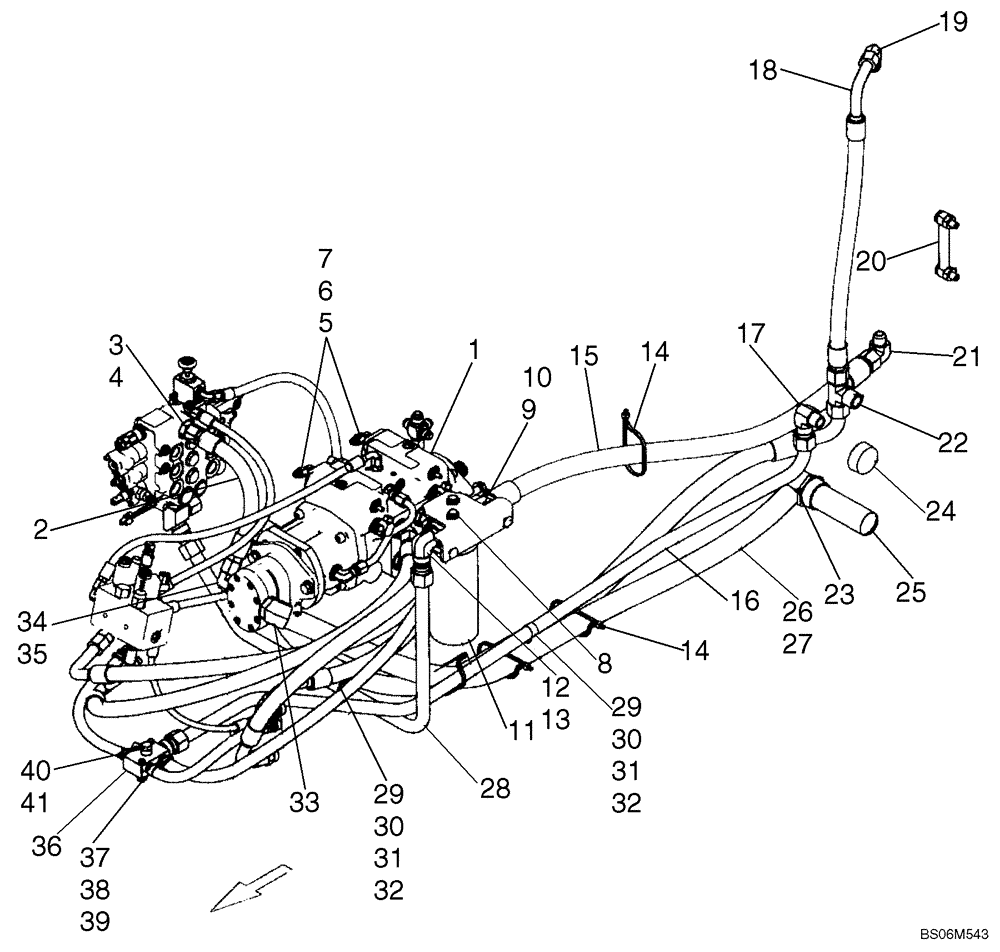

Запчасти Case 465 (06-04C) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (465 WITH PILOT CONTROL) (06) - POWER TRAIN

*

465 With Pilot Control

1шт.

1

87546977

PUMP,46 CC

Pump; A22 Component Parts Not Available At Time Of Printing

1шт.

1

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87547014

HOSE,19.05mm ID x 379mm L

379 mm (14.9 in); Valve Supply

1шт.

3

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 4

1шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 6

2шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87604074

ADAPTER

Connector, 6FJ x 6MJ W/ 1.2 Orifice

2шт.

8

REF

INSTRUCTION

For Filter Mounting And Breakdown, See Figure 06-08

1шт.

9

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl. 10

1шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

87430661

FILTER

Hydrostatic Filter; See Figure 06-18

1шт.

12

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl. 13

1шт.

13

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

15

87459853

HOSE ASSY.

1200 mm (47.24 in); Oil Cooler In

1шт.

16

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

17

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

18

87448981

HOSE ASSY.

675 mm (26.6 in); Oil Cooler Outlet

1шт.

19

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

20

87374752

GAUGE

1шт.

21

87038696

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

22

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

23

87029969

HYD CONNECTOR

Stem, 90 Bead Hose 1.25 ID x 1.25 NPTF

1шт.

24

87035993

PLUG,Sq Soc, 2"-11 1/2 NPTF

1шт.

25

189310A1

STRAINER ASSY.

Suction Line

1шт.

26

87039085

HOSE CLAMP,32mm - 54mm

2шт.

27

87547045

HOSE,31.75 mm ID x 790.00 mm

Loader Pump Supply

1шт.

28

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

29

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

30

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

32

122158A1

NUT,M8, U

2шт.

33

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

34

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 35

1шт.

35

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

87437351

MANIFOLD

1шт.

37

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

38

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

39

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

40

76349

PLUG,9/16" - 18 ORB

Incl. 41

1шт.

41

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
