Запчасти Case 465 (06-04) - JOYSTICK CONTROL PLUMBING, H PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN

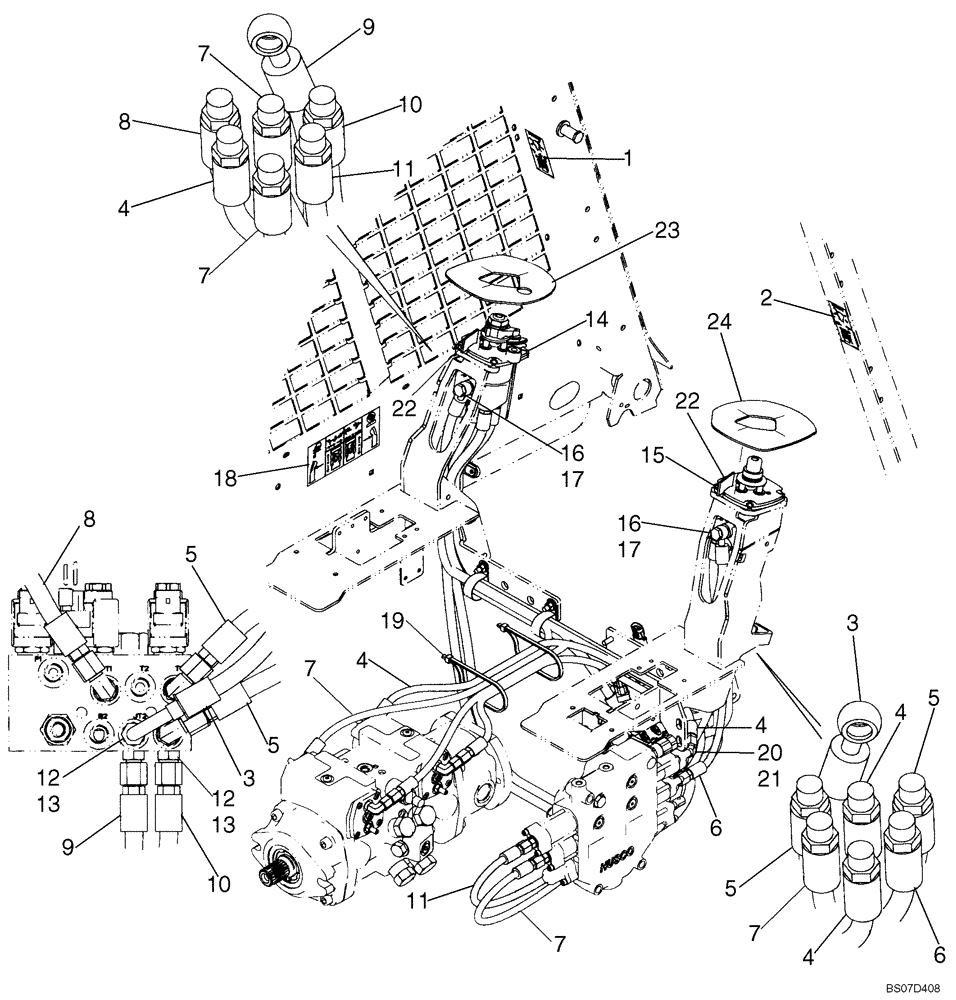

Схема запчастей Case 465 - (06-04) - JOYSTICK CONTROL PLUMBING, H PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN
10
3
17
19
7
6
5
4
5
4
7
2
7
22
9
5
21
13
16
22
4
3
23
4
4
13
12
16
10
9
6
1
17
8
18
11
11
12
14
7
20
5
24
15
8
7

Артикул

Название

Примечание

Количество

87575595

SERVICE KIT

Kit, Joystick - Plumbing, H-Pattern; Incl. 1 - 21 and Instructions

1шт.

1

87573275

DECAL

Decal; H- Pattern, Left Hand; See Figure 09-43B

1шт.

2

87573276

DECAL

Decal; H- Pattern, Right Hand; See Figure 09-43B

1шт.

3

87575292

HOSE,9.53mm ID x 662mm L

Joystick Supply; 662 mm

1шт.

4

87547029

HOSE,6.35 mm ID x 63.00 mm

3шт.

5

87547036

HOSE,9.65 mm ID x 720.00 mm

Joystick Supply Or Drain

2шт.

6

87547059

HOSE,6.35 mm ID x 770.00 mm

1шт.

7

87547030

HOSE,6.35 mm ID x 918.00 mm

3шт.

8

87547037

HOSE,9.65 mm ID x 535.00 mm

Joystick Drain

1шт.

9

87575291

HYDRAULIC HOSE,9.52 mm ID x 1443.00 mm

Joystick Supply

1шт.

10

87547038

HOSE,9.65 mm ID x 385.00 mm

Joystick Supply

1шт.

11

87547031

HOSE,6.35 mm ID x 2090.00 mm

1шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 13

2шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

87357240

HYDRAULIC VALVE

H- Pattern, Joystick Left Hand; See Fig 06-04F; If Used

1шт.

14

87740388

HYDRAULIC VALVE

H- Pattern, Joystick Left Hand; See Fig 06-04F

1шт.

15

87357241

HYDRAULIC VALVE

H- Pattern, Joystick Right Hand; See Fig 06-04G; If Used

1шт.

15

87740389

HYDRAULIC VALVE

H- Pattern, Joystick Right Hand; See Fig 06-04G

1шт.

16

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

No Longer Used, Order 87622364

2шт.

16

87622364

BOLT

Banjo Bolt, 10 Banjo 3/4 Hole Standard

2шт.

17

933610R1

SEALING RING,M14 x 18 x 1.8

4шт.

18

87438592

DECAL

Control Identification

1шт.

19

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

20

87593247

ELBOW

Incl. 21

1шт.

21

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

87621155

SEAL

2шт.

23

87618658

FOAM INSULATION

Seal, LH

1шт.

24

87618659

FOAM INSULATION

Seal, RH

1шт.

Выбрано товаров: 28
