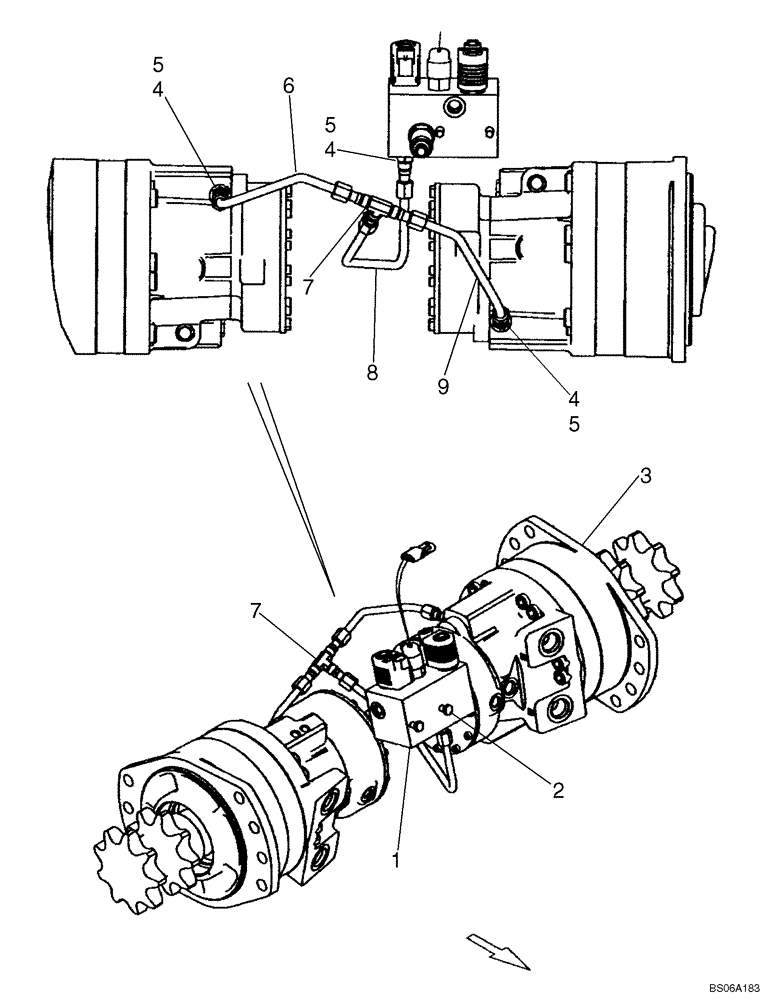

Запчасти Case 465 (06-03C) - HYDROSTATICS - TWO SPEED (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

MODELS WITH IN-LINE PUMP CONFIGURATION

1шт.

1

87459037

HYDRAULIC VALVE

Two Speed; See Figure 06-07

1шт.

87638779

SERVICE KIT

Conversion Kit, Split Pump to In-Line Pump, Incl Ref 8

1шт.

1

87756432

BRAKE VALVE

Valve, Brake Rel, 2 Spd

1шт.

2

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

3

87349721

HYDRAULIC MOTOR,660CC

Two Speed; See Figure 06-25 - 06-27

2шт.

3

87349721R

REMAN-HYD MOTOR

465 - SKID STEER BSN N7M452623, 2 Speed

2шт.

3

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 5

3шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87458948

HYD TUBE,9.53 mm OD

Tee To Left Hand Motor

1шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

87374115

HYD TUBE,7.75 mm ID x 9.53 mm OD x 242.7, 114.7 mm L

Speed Valve To Tee

1шт.

9

87458947

HYD TUBE,9.53 mm OD

Tee To Right Hand Motor

1шт.
