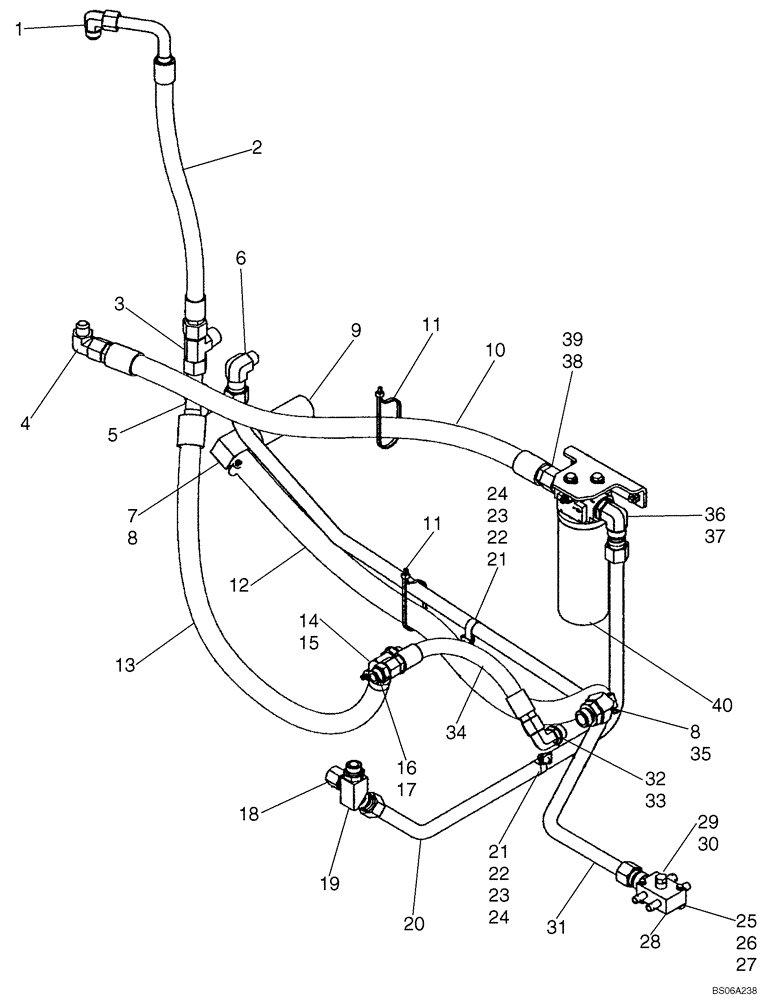

Запчасти Case 465 (06-03A) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

MODELS WITH IN-LINE PUMP CONFIGURATION

1шт.

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

2

87448981

HOSE ASSY.

Oil Cooler Outlet

1шт.

3

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

4

87038696

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

5

87035993

PLUG,Sq Soc, 2"-11 1/2 NPTF

1шт.

6

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

7

87029969

HYD CONNECTOR

Elbow, 90 deg Stem, 1-1/4 Stem x 1-1/4 NPTF; Replaces 217-137 Fitting

1шт.

8

87039085

HOSE CLAMP,32mm - 54mm

2шт.

9

189310A1

STRAINER ASSY.

Filter, Suction Line

1шт.

10

87459853

HOSE ASSY.

Oil Cooler In

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

12

87348364

HOSE ASSY.

Gear Pump Suction

1шт.

13

87348343

HOSE ASSY.

1670 mm (65.75 in); Charge Pump Suction; If Used

1шт.

13

87361407

HOSE ASSY.

1310 mm (51.57 in); Charge Pump Suction; If Used; Not Illustrated

1шт.

14

87418259

FITTING

90, 20 orb x 16 Bead

1шт.

15

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

16

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 17

3шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

219606

CAP,1-1/16" - 12 JIC

1шт.

19

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45, With Side Outlet

1шт.

20

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

122158A1

NUT,M8, U

2шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

26

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

27

87404992

SQUARE NUT,M6 x 1.0, Cl 8

Square, M6-1.0 Class 8

2шт.

28

87437351

MANIFOLD

Return, Oil

1шт.

29

76349

PLUG,9/16" - 18 ORB

Incl. 30

1шт.

30

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

32

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 33

3шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

87357019

HOSE ASSY.

Loader Valve Supply

1шт.

35

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

36

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl. 37

1шт.

37

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

38

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl. 39

1шт.

39

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

40

87430661

FILTER

Hydrostatic Filter; For Mounting, See Figure 06-08

1шт.
