Запчасти Case 465 (04-09) - CAB ELECTRICAL - CAB HARNESS (04) - ELECTRICAL SYSTEMS

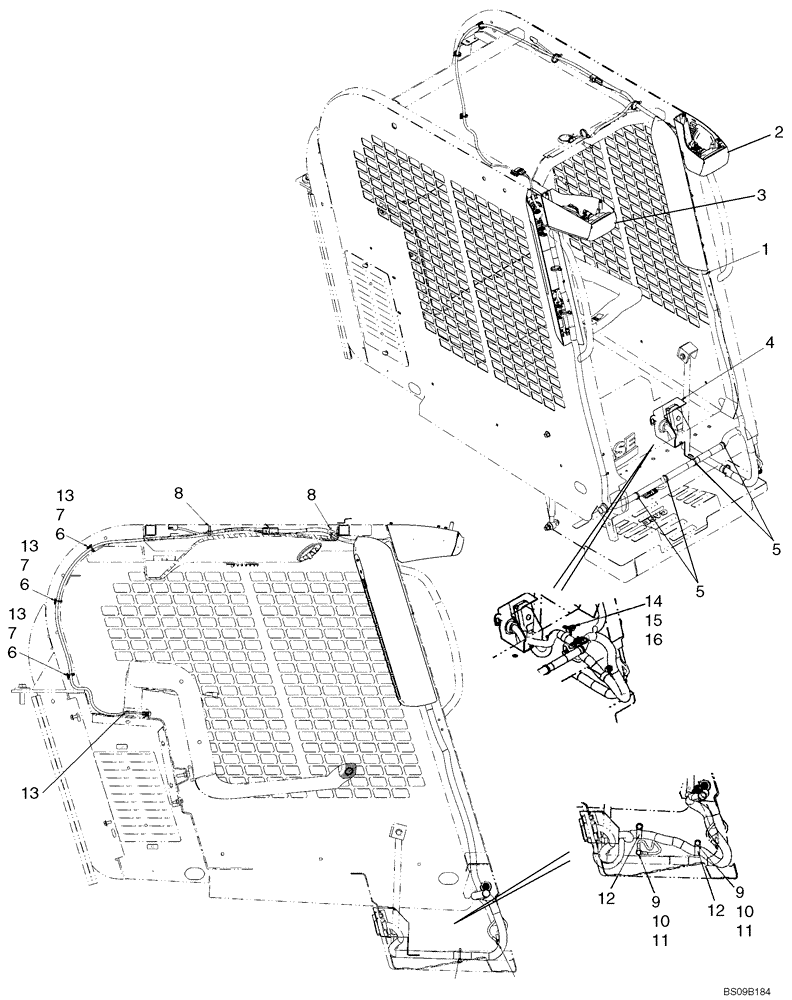

Схема запчастей Case 465 - (04-09) - CAB ELECTRICAL - CAB HARNESS (04) - ELECTRICAL SYSTEMS
14
13
13
11
13
10
4
6
1
2
10
11
12
2
7
9
16
6
7
6
13
8
15
5
9
12
5
7
8

Артикул

Название

Примечание

Количество

1

87715727

HARNESS

Cab; Door Harness Plug At Right Of Door; If Used

1шт.

1a

87745735

HARNESS

Cab; Door Harness Plug At Left Of Door

1шт.

2

87650098

LIGHT

Work Light, RH; See Fig 04-19

1шт.

3

87650097

LIGHT

Work Light, LH; See Fig 04-20

1шт.

3a

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

Mounting Hardware For Worklights Ref 2, 3, Not Illustrated; If Used

6шт.

3a

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

6шт.

3b

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

Mounting Hardware For Worklights Ref 2, 3, Not Illustrated

6шт.

4

87712105

COVER

Cover, Electrical Harness

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

6

87642915

CABLE TIE,198mm L

CABLE STRAP If Used

3шт.

7

87642914

BASE

If Used

3шт.

8

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

12

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

27.0mm M8 Bolt

2шт.

13

H439303

CLIP

Wire Harness Clip

4шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

16

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

17

87733935

DECAL

Option Panel; Not Illustrated, See Fig 09-60

1шт.
