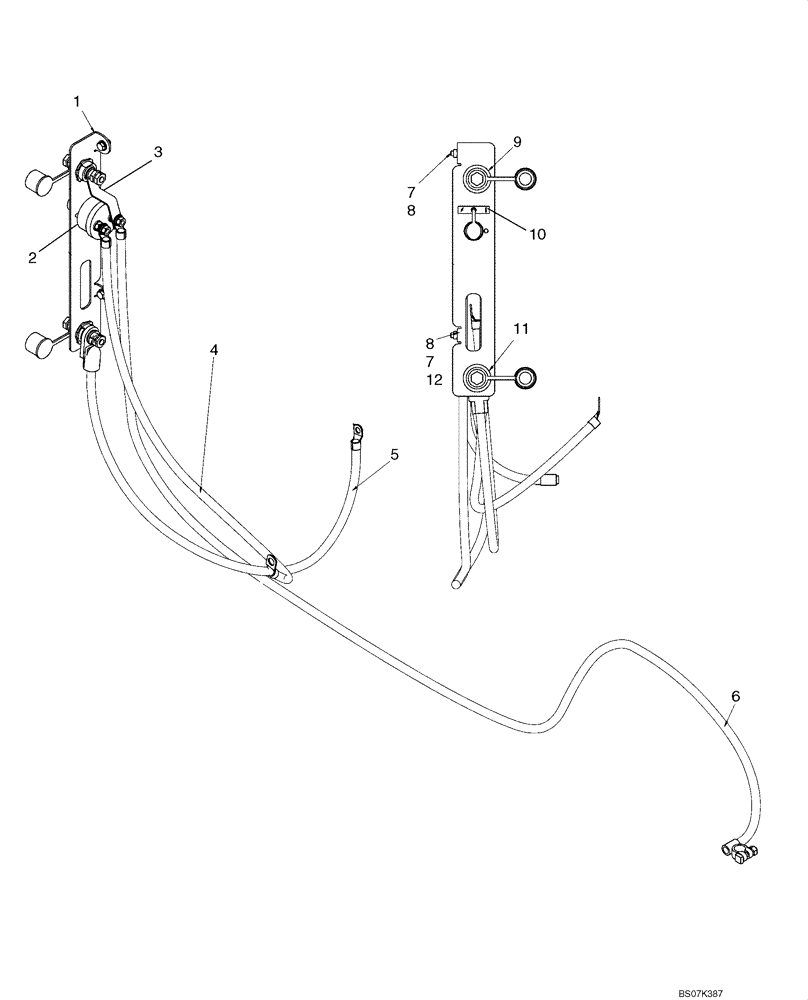

Запчасти Case 465 (04-06) - DISCONNECT SWITCH - REMOTE JUMP START (04) - ELECTRICAL SYSTEMS

1

87581954

BRACKET

Remote Jump Start

1шт.

2

87458467

ROTARY SWITCH

Master Disconnect

1шт.

3

399665A2

ANCHOR

Strip, Battery Jump Start

1шт.

4

87581958

CABLE

Negative Battery, 1034mm (40 11/16 in.)

1шт.

5

87682370

CABLE

Positive Battery, 1058mm (41 21/32 in.)

1шт.

6

87581956

CABLE

Negative Battery, 2281mm (89 13/16 in.)

1шт.

7

87030567

SQUARE NUT

2шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

9

399384A1

TERMINAL CONNECTOR

Negative

1шт.

10

176332A1

DECAL

Battery Disconnect

1шт.

11

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Positive

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.
