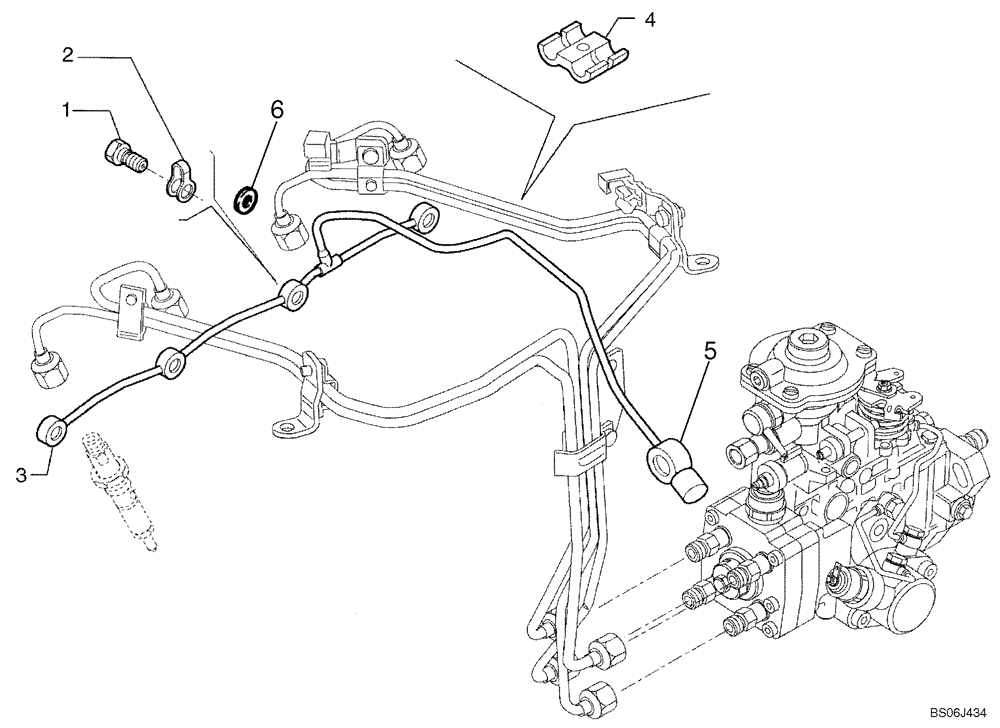

Запчасти Case 465 (03-09) - FUEL INJECTION SYSTEM - DRAIN LINE (03) - FUEL SYSTEM

1

8097552

SCREW

4шт.

2

4895305

SEAL

4шт.

3

2852065

TUBE,264, 110 mm Length

Fuel Drain

1шт.

4

2852521

CLIP

1шт.

5

NSS

NOT SOLD SEPARAT

Banjo Connector Assy; Order 2852065 Tube

1шт.

6

2855903

SEALING WASHER,5.8mm ID x 11mm OD x 1.2mm Thk

If Used

8шт.

2852093

PLUG

Incl. Plug And O-Ring; Not Illustrated

1шт.

2852094

PLUG

1шт.

4899055

O-RING,8" ID x 1.5" Width

1шт.
