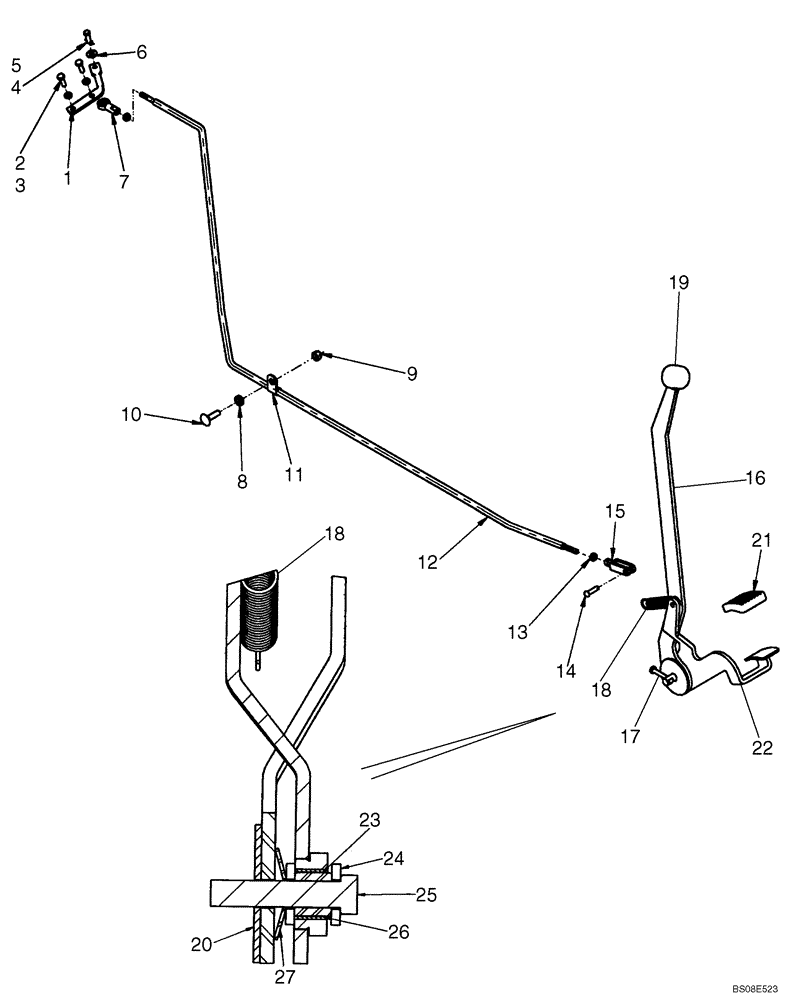

Запчасти Case 465 (03-02) - CONTROLS - THROTTLE (03) - FUEL SYSTEM

87608660

SERVICE KIT

Foot Throttle; Incl Refs 1 - 15, 21, 22, 27, And Heater Tube 87612366 Not Shown

1шт.

1

87608065

ROD

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

3

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

4

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

5

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

6

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

7

A146456

BALL

1шт.

8

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

9

9628098

NUT,M8 x 1.25, Cl 10

1шт.

10

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

1шт.

11

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

87602735

ROD

1шт.

13

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

14

D23693

AXLE PIN

If Used

1шт.

14

87482654

CLEVIS PIN

1шт.

15

87622861

CLEVIS PIN

1шт.

16

87610132

THROTTLE CONTROL

Incl. 1 - 27

1шт.

17

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

18

D124939

SPRING

1шт.

19

A177436

KNOB

1шт.

20

1342374C1

DISC

1шт.

21

323657A1

PAD

1шт.

22

87743040

BRACKET

Control Assembly, Foot Throttle; Replaces 186904A1

1шт.

23

187035A2

SLEEVE

1шт.

24

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

25

87612749

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60 10.9

1шт.

26

186905A1

BUSHING

1шт.

27

R14771

WASHER

1шт.
