Запчасти Case 465 (03-01) - FUEL LINES AND FILTER (03) - FUEL SYSTEM

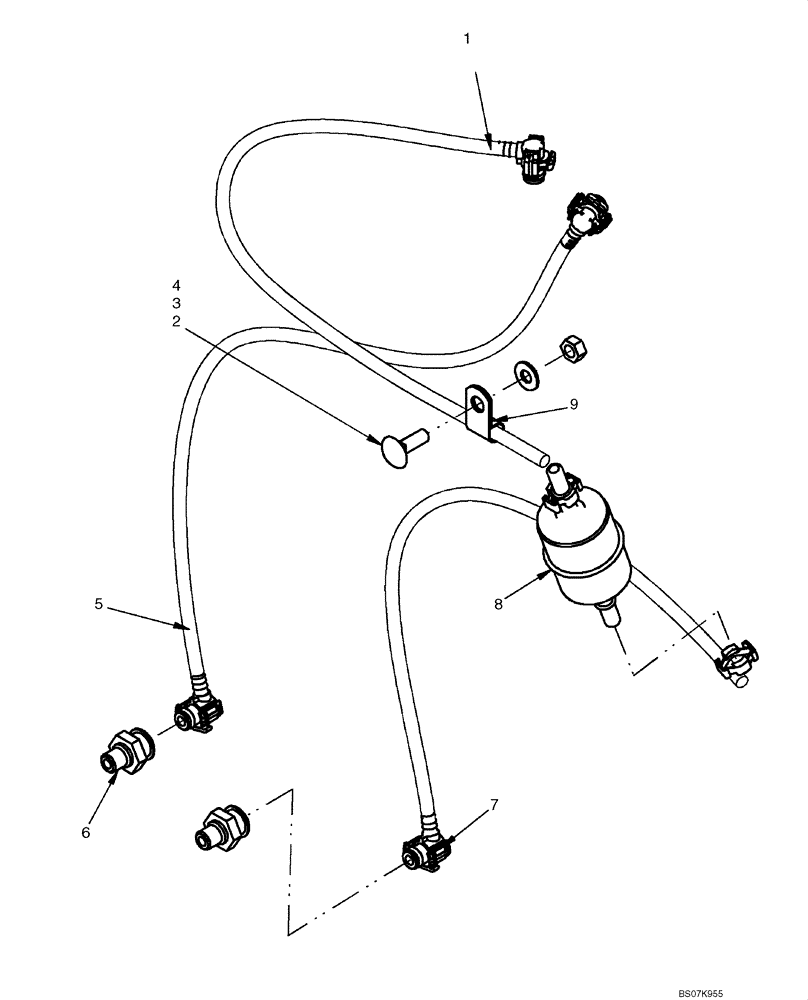

Схема запчастей Case 465 - (03-01) - FUEL LINES AND FILTER (03) - FUEL SYSTEM
1
4
5
9
8
2
3
6
7

Артикул

Название

Примечание

Количество

1

87690855

TUBE

Fuel Line, 565mm (22 1/4 in.)

1шт.

2

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

87690853

TUBE

Return Fuel, 655mm (25 25/32 in.)

1шт.

6

87431323

ADAPTER

2шт.

7

87690854

TUBE

Fuel Line, 625mm (24 5/8 in.)

1шт.

8

87548612

FUEL FILTER

In Line

1шт.

9

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Выбрано товаров: 9
