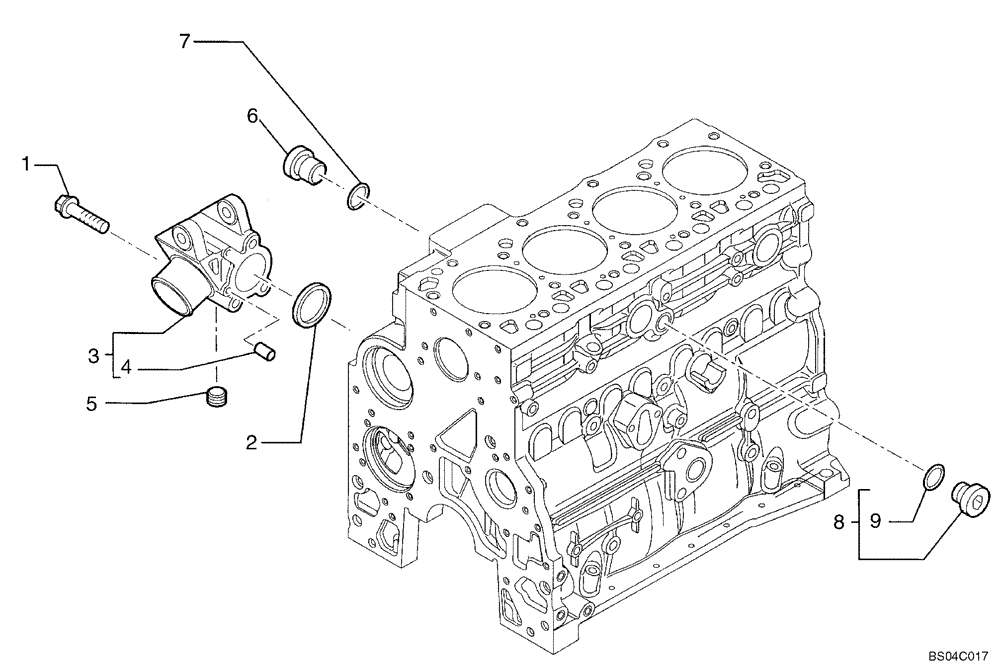

Запчасти Case 465 (02-34) - COOLING SYSTEM - ENGINE (02) - ENGINE

1

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2852145

SUPPORT

Incl. Ref 4

1шт.

4

NSS

NOT SOLD SEPARAT

Dowel

2шт.

5

2852511

PLUG,R3/8" - 18 NPTF, M8, 12.7mm L

1шт.

4895392

HEX SOCKET PLUG,M18 x 1.5

Torque Converter Oil; Incl. Ref 6, 7

1шт.

6

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

Compressor Plumbing; Incl. Ref 9

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.
