Запчасти Case 465 (09-54) - BUCKETS, LOADER - 2134 MM (84 IN) WIDE BUCKET (09) - CHASSIS

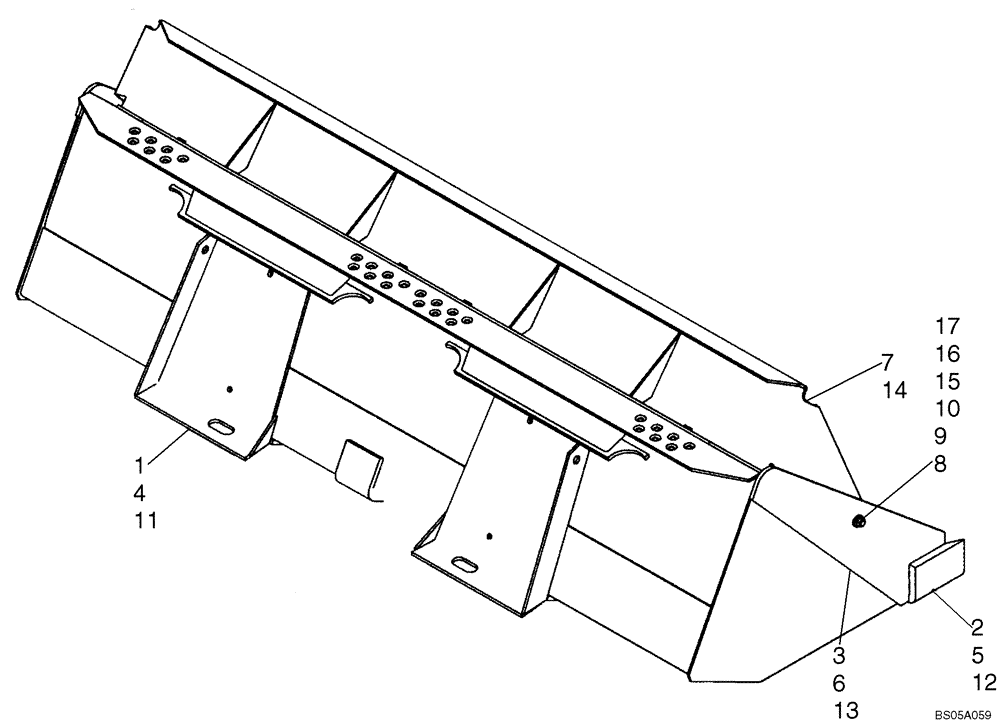

Схема запчастей Case 465 - (09-54) - BUCKETS, LOADER - 2134 MM (84 IN) WIDE BUCKET (09) - CHASSIS
10
3
8
15
16
1
17
5
9
14
13
12
2
6
7
11
4

Артикул

Название

Примечание

Количество

1

86994100

BUCKET

Light Material; 84 in; Order From Whole Goods; Incl. 2, 3

1шт.

2

87400358

CUTTING EDGE

84 in

1шт.

3

H438935

EDGE, CUTTING

Side

2шт.

4

86994088

BUCKET

Dirt; 84 in; Order From Whole Goods; Incl. 5, 6

1шт.

5

87400358

CUTTING EDGE

84 in

1шт.

6

245109A2

EDGE, CUTTING

Side

2шт.

EXTENSIONS FOR 86994088

1шт.

7

87403474

EXTENSION

With Spill Guard

1шт.

8

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

2шт.

9

825-51412

FLANGE NUT,M12, Flg Ser

2шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

11

86994091

BUCKET

Heavy Duty Dirt; 84 in; Order From Whole Goods; Incl. 12, 13

1шт.

12

87403368

CUTTING EDGE

84 in

1шт.

13

245109A2

EDGE, CUTTING

Side

2шт.

EXTENSIONS FOR 86994091

1шт.

14

87403595

EXTENSION

With Spill Guard

1шт.

15

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

2шт.

16

825-51412

FLANGE NUT,M12, Flg Ser

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

18

86577173

CUTTING EDGE,Bolt On, 9 Hole, 203.2mm W x 2168.5mm L

Reversible, 84 in (For bucket 86994091)

1шт.

19

86548338

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 5

9шт.

20

425-1010

NUT,5/8"-11, G5

9шт.

Выбрано товаров: 22
