Запчасти Case 465 (02-11) - CYLINDER BLOCK - COVERS, FLYWHEEL (02) - ENGINE

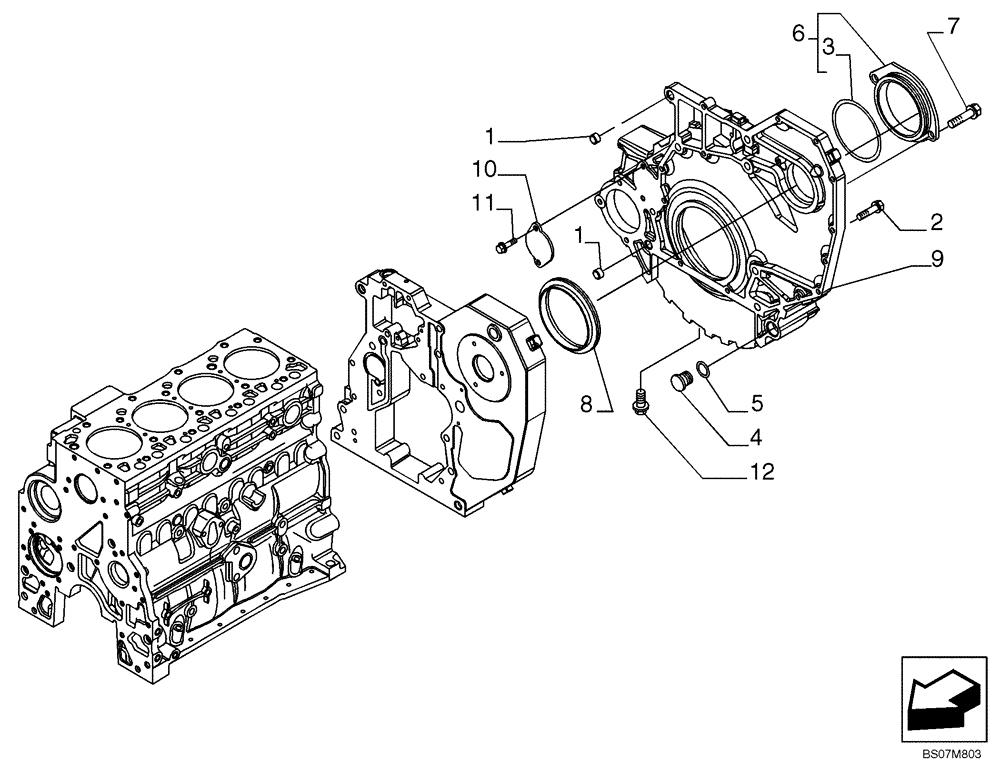

Схема запчастей Case 465 - (02-11) - CYLINDER BLOCK - COVERS, FLYWHEEL (02) - ENGINE
11
4
12
2
5
7
1
8
3
9
1
6
10

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

2шт.

2

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

7шт.

2

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

5шт.

2

4899074

SCREW,Hex Flg, M12 x 1.75 x 120

3шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

In Alternative with 2854866

1шт.

2

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

2шт.

2

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

In Alternative with 4899143

1шт.

3

2854075

O-RING,0.103" Thk x 2.987" ID, -151

1шт.

4

4895378

BUTTON PLUG,M29.2

2шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

2шт.

6

2854073

COVER

- ASSY

1шт.

7

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

9

2855180

HOUSING

Flywheel

1шт.

10

4895155

COVER

1шт.

11

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

12

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

Выбрано товаров: 18
