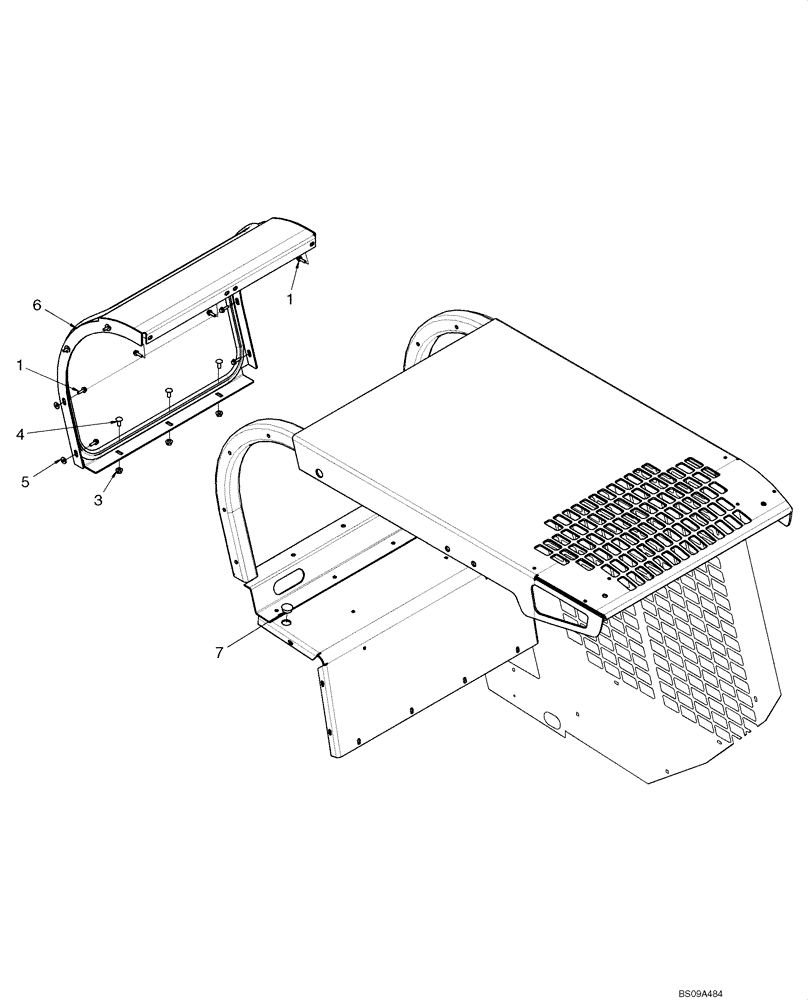

Запчасти Case 465 (09-38) - REAR WINDOW - WITHOUT HEAT AND AIR CONDITIONING (09) - CHASSIS

1

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

11шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used; Not Illustrated

3шт.

3

43362

NUT,M8 x 1.25, Cl 10

If Used

3шт.

3

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

4

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

8шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

6

86625129

PLUG,Dome, 1" Hole, Nylon

2шт.

7

87626400

WINDOW

Window Assy Rear; Incl 8- 13

1шт.

7

87470207

WINDOW

Window Assy Rear-Gray; Incl 8- 13

1шт.

8

NSS

NOT SOLD SEPARAT

Rear Window Frame

1шт.

9

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

10

87026871

PLASTIC SIGN

Exit Tag

1шт.

11

87626397

PLASTIC

H-Channel Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Rear Window Glass

1шт.

13

87643813

PLASTIC

Key, Locking Non-HVAC

1шт.
