Запчасти Case 465 (09-35) - RADIO - SPEAKERS AND HOUSING (09) - CHASSIS

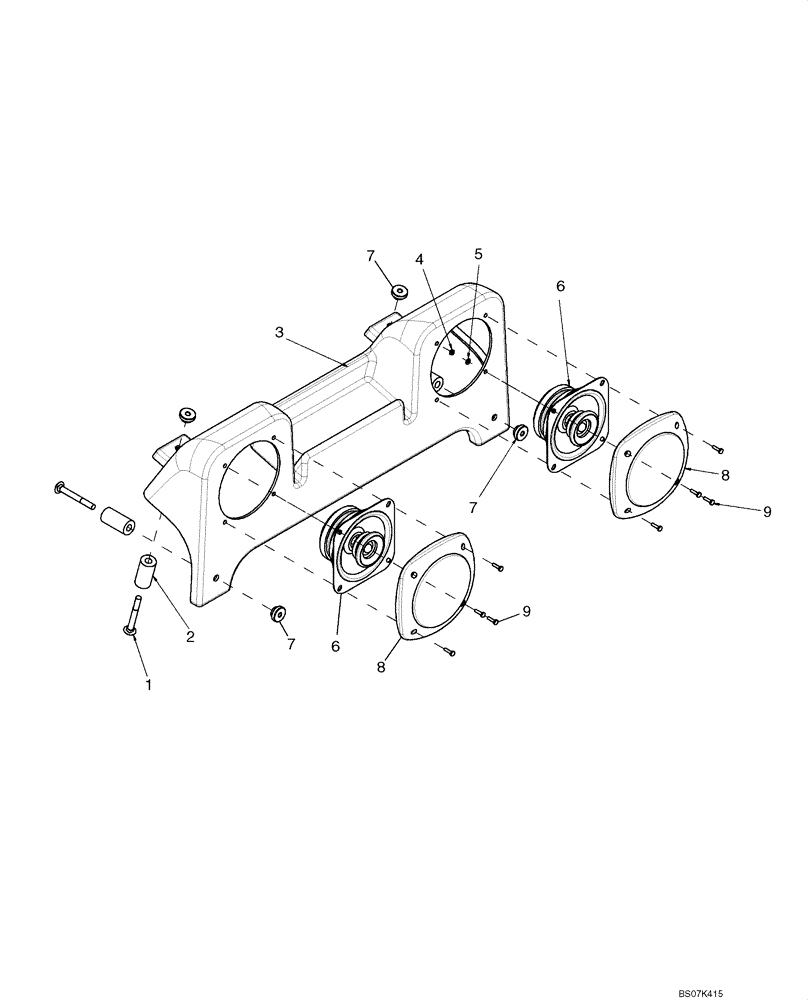

Схема запчастей Case 465 - (09-35) - RADIO - SPEAKERS AND HOUSING (09) - CHASSIS
2
7
9
5
4
3
6
8
7
8
6
9
1

Артикул

Название

Примечание

Количество

1

280498

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/4", Gr 5

4шт.

2

87668006

SPACER

8.26 ID X 19.05 OD X 38.1 Length

4шт.

3

87627524

HOUSING

Speaker

1шт.

4

86508812

NUT,M3, Cl 8

8шт.

5

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

8шт.

6

87743001

SPEAKER

4 in. Speaker With Speaker Grill; Incl Ref 8; Replaces 87672222

2шт.

7

87667727

PUSH-ON NUT

Plastic Thumb

4шт.

8

NSS

NOT SOLD SEPARAT

Speaker Grill; Order Ref 6, Speaker With Grill

2шт.

9

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

If Used

8шт.

9

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

Screw, M3 X 20 PHD Full H 4.8 Znd

8шт.

Выбрано товаров: 10
