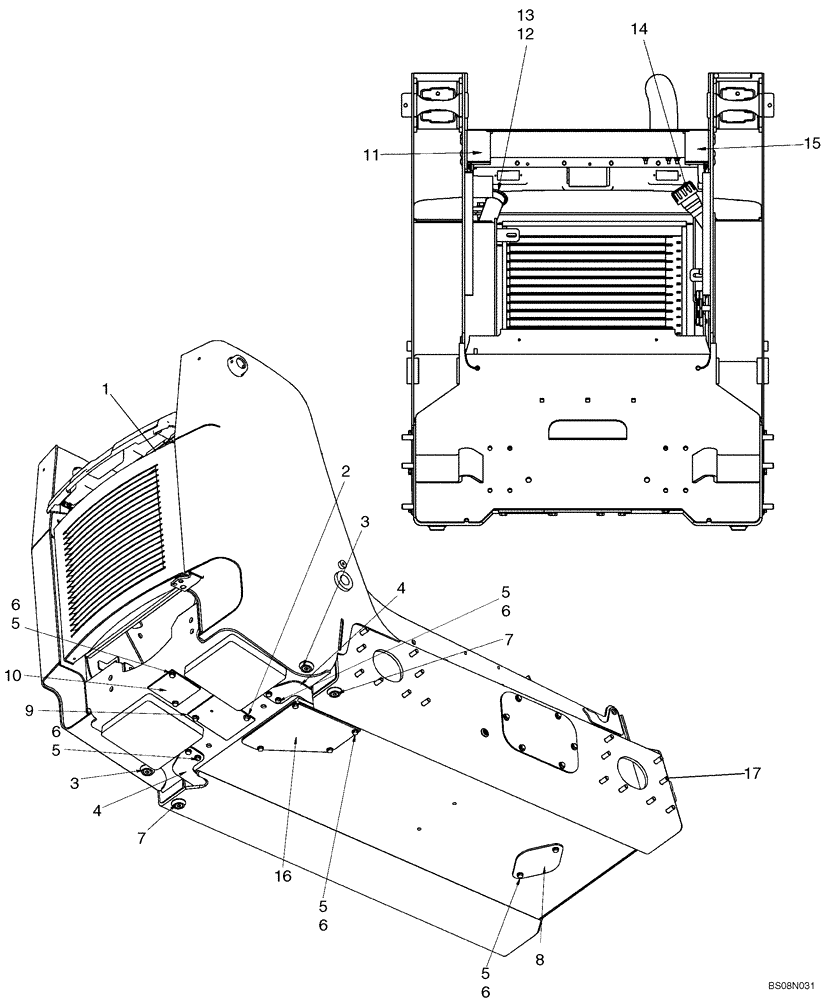

Запчасти Case 465 (09-06) - CHASSIS (09) - CHASSIS

87618946

SERVICE KIT

Chassis; Incl Main Frame, Fuel Cap, Hydraulic Cap, Fuel Sender And Gasket

1шт.

1

REF

INSTRUCTION

Rear Door; See Fig 09-15

1шт.

2

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

3

87432221

PLUG

Magnetic

2шт.

4

189422A1

COVER

Rear Chain Tank

2шт.

5

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8-12шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

17шт.

7

86625135

PLUG,1" - 11-1/2 NPT

2шт.

8

247609A1

COVER

1шт.

9

87711490

COVER PLATE

1шт.

10

H436914

LARGE PLATE

PLATE, LARGE

1шт.

11

87665570

BRACKET

Rear ROPS Mount, RH

1шт.

12

H436887

CAP

Fuel, Non Locking

1шт.

13

108925A1

FILLER CAP

Fuel, Locking; Incl Set Of 2 Keys

1шт.

14

257448A1

CAP

Hydraulic

1шт.

15

87665572

BRACKET

Rear ROPS Mount, LH

1шт.

16

87458100

PLATE

1шт.

17

254799A1

STUD

M16 x 45; Axle Studs

32шт.
