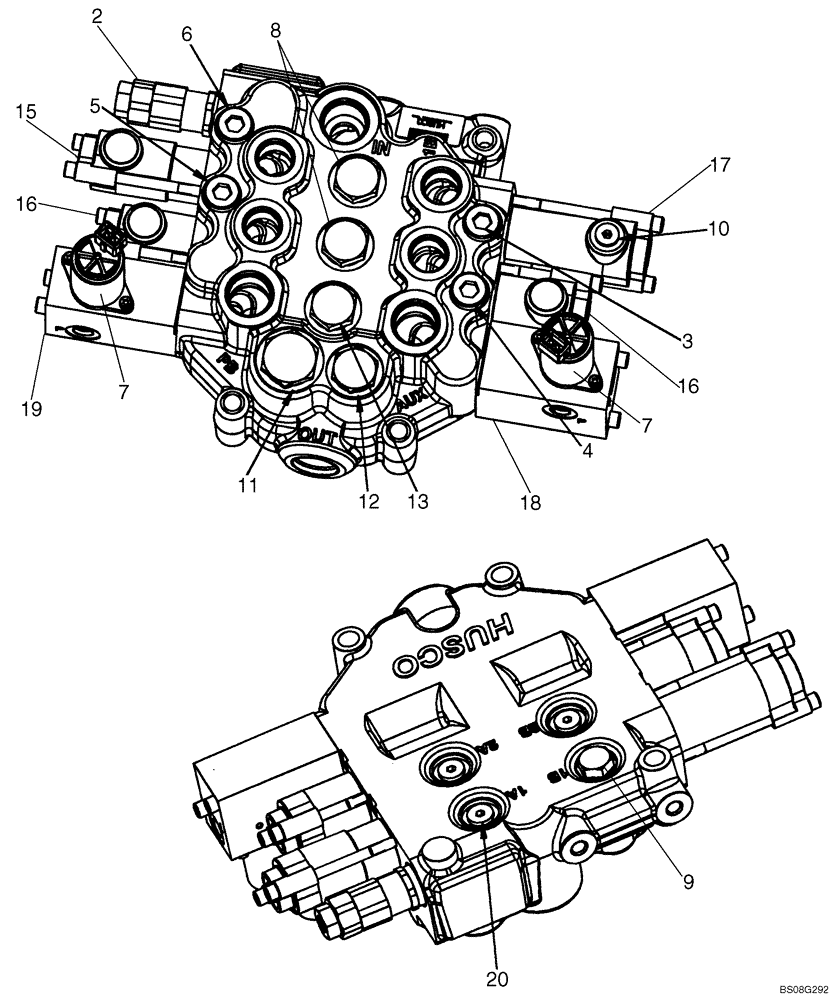

Запчасти Case 465 (08-18) - CONTROL VALVE - 87546975 VALVE ASSY (EH PILOT CONTROL) (08) - HYDRAULICS

87546975

HYDRAULIC VALVE

Manual Control; Pilot Control Models With Hydraulic Attachment

1шт.

1

87610517

SEAL KIT

Replacement; See Fig. 08-23

1шт.

2

87610350

VALVE PRESSURE RELIE

Main Relief, 210 Bar (3050 psi); See Fig. 08-24

1шт.

3

87576153

VALVE

Workport Relief, 215 Bar; See Fig. 08-25

1шт.

4

87445935

VALVE

Workport Relief, 230 Bar; See Fig. 08-25

1шт.

5

87445943

VALVE

Workport Relief, 260 Bar; See Fig. 08-25

1шт.

6

87445932

VALVE

Workport Anti-Cavitation; See Fig. 08-25

1шт.

7

87576154

SOLENOID

High Flow, For EH Auxiliary; See Fig. 08-37

2шт.

8

87576157

DAMPING VALVE

Check Valve Group; See Fig. 08-27

2шт.

9

87610351

VALVE,M14 x 1.5

Check Valve Group; See Fig. 08-27

1шт.

10

87610530

PLUG,7/16" - 20

Assy

1шт.

11

87576158

PLUG

Assy; See Fig. 08-27

1шт.

12

87576160

PLUG

Assy; See Fig. 08-27

1шт.

13

87576161

PLUG

Assy

1шт.

14

87576162

PLUG

Assy, Metric; Not Illustrated; See Fig. 08-27

1шт.

15

87610531

SPOOL

End Group; See Fig. 08-32

1шт.

16

87610532

SPOOL

End Group; See Fig. 08-31

2шт.

17

87610533

REPAIR KIT

End Group; See Fig. 08-30

1шт.

18

87611845

SPOOL

End Group; EHPV; Incl. Ref 7; See Fig. 08-37

1шт.

19

87611846

SPOOL

End Group; EHPV; Incl. Ref 7; See Fig. 08-38

1шт.

20

87610352

PLUG

Assy

3шт.
