Запчасти Case 465 (08-15) - HYDRAULICS - HIGH FLOW (08) - HYDRAULICS

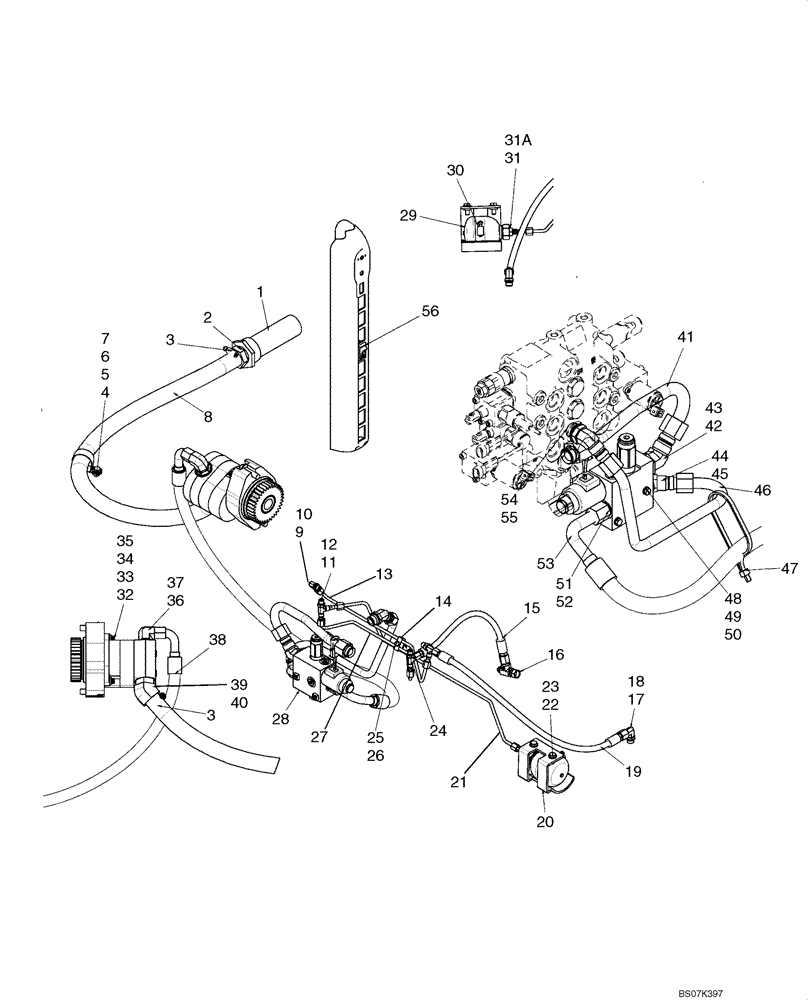

Схема запчастей Case 465 - (08-15) - HYDRAULICS - HIGH FLOW (08) - HYDRAULICS
41
18
55
1
31a
19
22
33
40
52
17
51
12
14
36
50
32
9
23
47
3
25
20
27
2
11
31
35
44
5
37
45
54
15
46
16
42
30
13
29
10
56
24
6
7
8
43
26
39
3
38
28
49
34
48
21
53
4

Артикул

Название

Примечание

Количество

87618732

SERVICE KIT

Kit, High Flow Bi-Directional Gear; Incl 1 - 56 And Fig 08-06 And Fan

1шт.

1

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

2

86643479

HYD CONNECTOR

Stem Straight Bead Hose 1.25ID X 1.25 NPTF

1шт.

3

87039085

HOSE CLAMP,32mm - 54mm

2шт.

4

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

7

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

87353004

HOSE ASSY.

Hose, High Flow Suction, 1000mm (39 3/8 in.)

1шт.

9

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl 10; If Used

1шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 12; If Used

3шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

13

87018051

TUBE,6.35 mm OD

Pilot Pressure; If Used

1шт.

14

608089

CLAMP

If Used

1шт.

15

87353114

HOSE ASSY.

Charge Pressure, 325mm (12 13/16 in.); If Used

1шт.

16

87438766

TEE

If Used

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 18; If Used

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

87427370

HOSE ASSY.

610mm (24 in.); If Used

1шт.

20

87672246

BRACKET

If Used

1шт.

21

87458744

HYD TUBE,6.35 mm OD x 583.4, 124.1 mm L

Pilot Pressure; If Used

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

If Used

2шт.

24

80272535

WIRE CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, P Type

If Used

1шт.

25

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

If Used

1шт.

26

87030561

NUT,M6 x 1, Cl 8

If Used

1шт.

27

87438840

HYD TUBE,6.35 mm OD

Pilot Pressure; If Used

1шт.

28

87012669

VALVE

Combination Valve; See Fig 08-14

1шт.

29

87376969

ACCUMULATOR

If Used

1шт.

30

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

If Used

1шт.

31

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 31A; If Used

1шт.

31a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

87428636

KIT

PTO Kit; Incl (1) PTO, (2) Screws, (1) Gasket

1шт.

33

87020734

PUMP,31.79 CC

Gear Pump; See Fig 06-21

1шт.

34

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

35

87016486

12 PT SCREW,M10 x 1.5 x 40mm OAL, Cl 12.9

2шт.

36

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 37

1шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

87353007

HOSE ASSY.

1185mm (46 21/32 in.)

1шт.

39

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 40

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

41

87436470

HYD TUBE,19.05 mm OD

High Flow Return

1шт.

42

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 43

1шт.

43

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

86512996

ELBOW,45 Degree, 7/8"-14 x 3/4"-16, O-Ring

Incl 45

1шт.

45

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

87436469

HYD TUBE,15.88 mm OD

High Flow Supply

1шт.

47

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP If Used

1шт.

48

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

49

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

50

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

51

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 52

1шт.

52

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

53

87414842

HOSE ASSY.

High Flow Supply, 1050mm (41 11/32 in.); If Used

1шт.

54

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 55

1шт.

55

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

56

87414769

SWITCH

Rocker Switch, High Flow

1шт.

Выбрано товаров: 58
