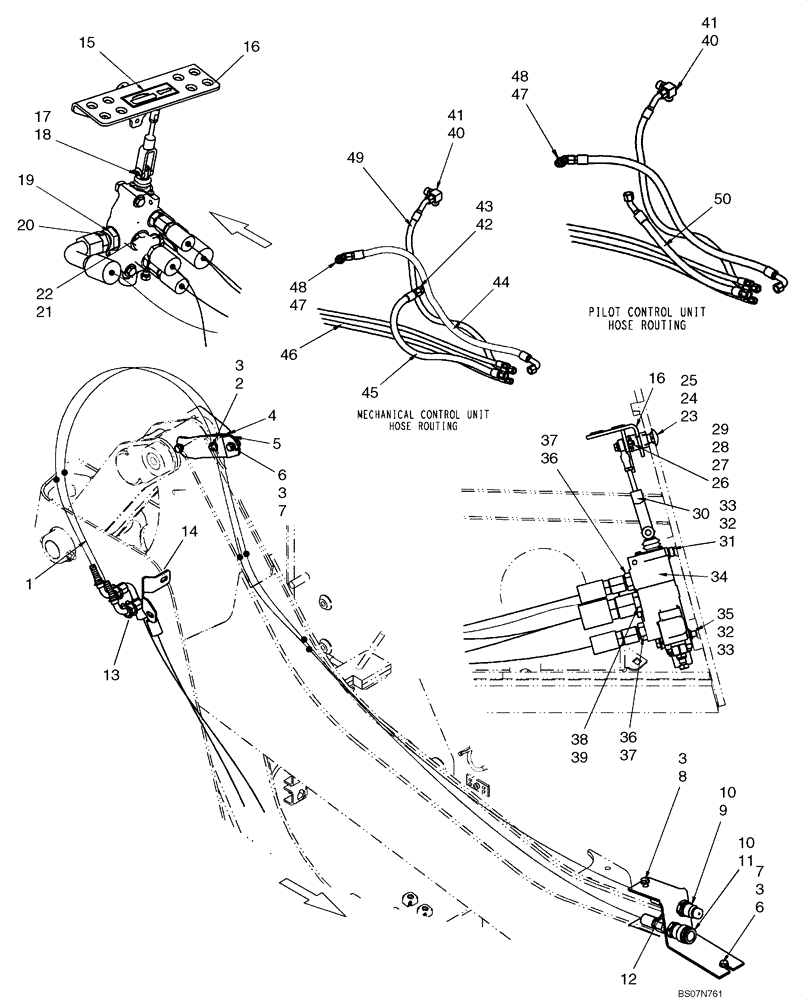

Запчасти Case 465 (08-09) - HYDRAULICS - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

1

87457029

HOSE ASSY.

Secondary Auxiliary, 2950mm (116 3/32 in.)

2шт.

2

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

4

H231894

CLAMP

1шт.

5

253476A1

BAR

1шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

7

86512554

NUT,M10 x 1.5, Cl 10

3шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

87417308

COUPLING, BREAK AWAY

1/2 Male Quick Disconnect; If used

1шт.

9

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

10

595460

BHD LOCK NUT,7/8" - 14

2шт.

11

393394A1

COUPLING, BREAK AWAY

1/2 Female Quick Disconnect; If Used

1шт.

11

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

12

87446078

PLATE

1шт.

13

87301328

SNAP RING

Retaining, "E" Style # 98 Plated

4шт.

14

87457183

ANGLE

1шт.

15

139618A1

DECAL

Auxiliary Hydraulic Control

1шт.

16

87423833

PEDAL ASSY.

Auxiliary Hydraulic; If Used

1шт.

16

87741562

PEDAL

Auxiliary Hydraulic

1шт.

17

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Cotter Ring

1шт.

18

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

Clevis Pin, Short

1шт.

19

129878A1

FITTING

1шт.

20

87303664

HYD CONNECTOR

Adapter Tube 37Fl 5/8 X 3/4

1шт.

21

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl 22

1шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

24

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

25

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

Bronze

1шт.

26

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

27

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

29

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

30

87444161

LINKAGE

Auxiliary; Incl L53928, 86976064, 87444164 And 87444160

1шт.

31

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

32

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

33

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

34

87017348

VALVE

Secondary Auxiliary; See Fig 08-40

1шт.

35

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

36

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 37;If Used

2шт.

36

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 37

2шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

Incl 39

1шт.

39

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

Incl 41

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

42

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 43

1шт.

43

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

87451962

HOSE ASSY.

Secondary Auxiliary Outlet, 1225mm (48 1/4 in.)

1шт.

45

87451963

HOSE ASSY.

Secondary Auxiliary Inlet, 920mm (36 7/32 in.)

1шт.

46

87457028

HOSE ASSY.

Secondary Auxiliary, 2580mm (101 19/32 in.)

2шт.

47

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 48

1шт.

48

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

49

87603114

HOSE

Secondary Auxiliary Return, 1320mm (52 in.)

1шт.

50

87603115

HOSE

Secondary Auxiliary Inlet, 735mm (28 15/16 in.)

1шт.
