(07-02) - TWO SPEED, VALVE ASSY

Запчасти Case 465 (07-02) - TWO SPEED, VALVE ASSY (07) - BRAKES

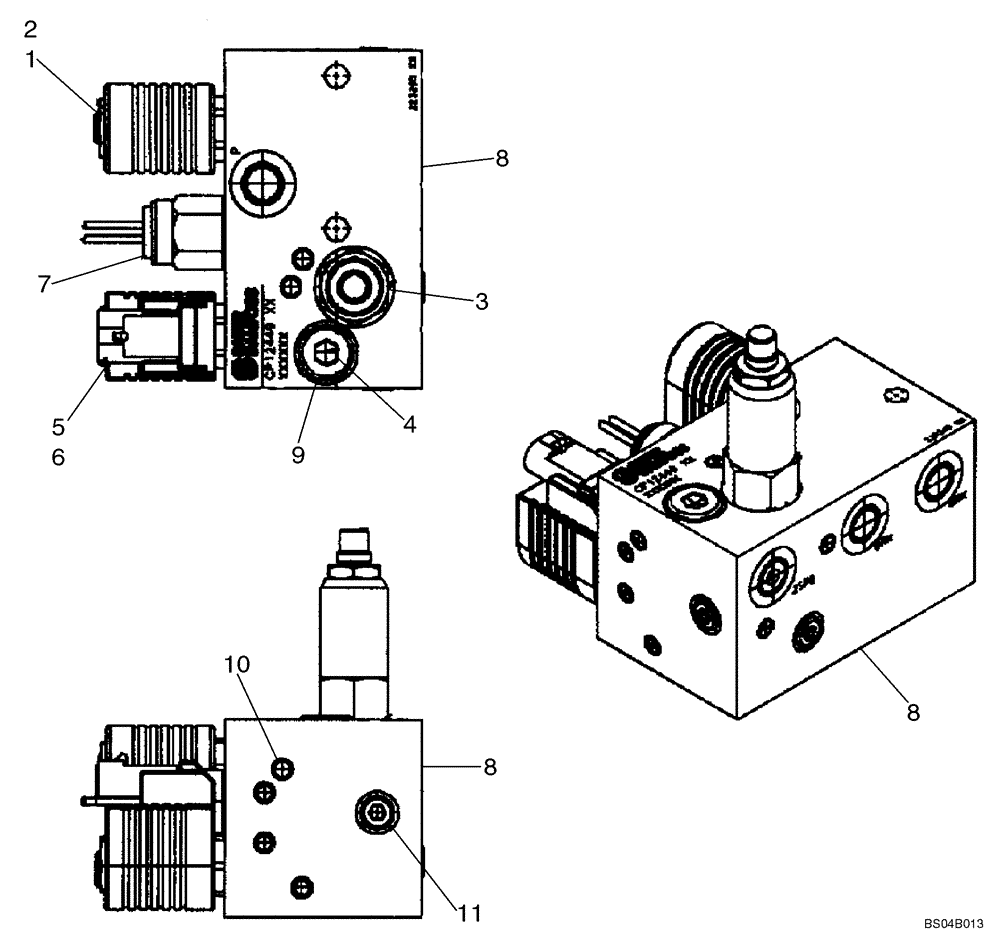

Схема запчастей Case 465 - (07-02) - TWO SPEED, VALVE ASSY (07) - BRAKES
5
8
4
10
1
7
9
8
3
6
8
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87459037

HYDRAULIC VALVE

Two Speed; Incl. 1 - 11

1шт.

1

87424182

BRAKE VALVE

1шт.

2

87433496

COIL

Not Illustrated Separately

1шт.

3

87459301

VALVE

Sequence

1шт.

4

87426545

ORIFICE

M12

1шт.

5

87433495

SOLENOID VALVE

1шт.

6

87433499

COIL

Not Illustrated Separately

1шт.

7

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Plug

1шт.

10

NSS

NOT SOLD SEPARAT

Expansion Plug

11шт.

11

NSS

NOT SOLD SEPARAT

Plug

3шт.
